3inch 1500W 110V solar water pump with S/S impeller for Irrigation solar submersible pump price
Categories:DC SOLAR SUBMERSIBLE PUMP
Brand:ECOCORE
Model:3DSC
Type:3 inch solar pump with s/s impeller
Pump Body Material:Stainless steel
impeller Material:Stainless steel
Application:Poultry Farming,Irrigation,Household water intake
Package type:wooden case
Warranty:2 years
Certificate:CE, GS, RoHS
3" STAINLESS STEEL IMPELLER SOLAR PUMP
Model | Power | Voltage | Max flow(m³/h) | Max head(m) | Outlet(inch) |
3DSC4.5-35-24-300 | 300 | 24 | 4 | 35 | 1.25" |
3DSC4.5-50-48-400 | 400 | 48 | 4 | 50 | 1.25" |
3DSC4.5-80-48-600 | 600 | 48 | 4 | 80 | 1.25" |
3DSC4.8-95-48-750 | 750 | 48 | 4.8 | 95 | 1.25" |
3DSC4.8-95-72-750 | 750 | 72 | 4.8 | 95 | 1.25" |
3DSC5-112-72-1100 | 1100 | 72 | 5 | 112 | 1.25" |
3DSC5-112-110-1100 | 1100 | 110 | 5 | 112 | 1.25" |
3DSC5-135-110-1500 | 1500 | 110 | 5 | 135 | 1.25" |
3DSC6-45-48-750 | 750 | 48 | 6 | 45 | 1.25" |
3DSC6-60-48-750 | 750 | 48 | 6 | 60 | 1.25" |
3DSC6-60-72-750 | 750 | 72 | 6 | 60 | 1.25" |
3DSC6-85-110-1100 | 1100 | 110 | 6 | 85 | 1.25" |
3DSC6-115-110-1500 | 1100 | 110 | 6 | 115 | 1.25" |

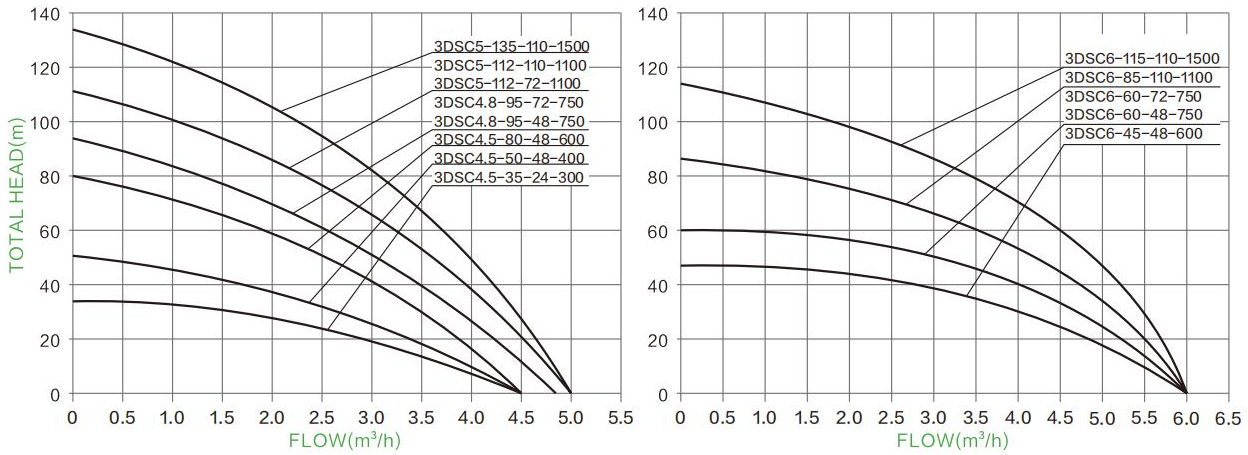

3 INCH S/S IMPELLER SOLAR PUMP PARAMETER
HOW TO CHOOSE A PUMP
1.Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
2.Compare your requiremt with out product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according to different folw and prices.
PRODUCT PACKAGING

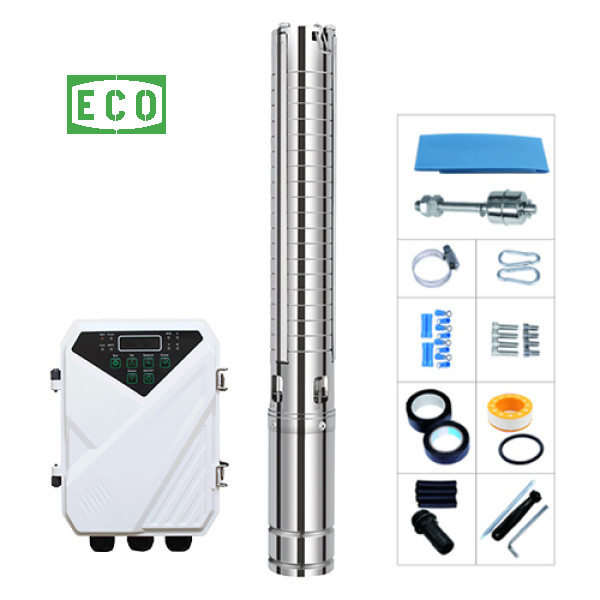

What we get for you:(Package Include)
1 x 3inch DC solar s/s impeller pump with one 2m cable
1 x Pump controler with MPPT function
1 x Stainless steel float swith (sensor for tank)
1 x Pump outlet joint connector
1 x Splice kit for cable join
1 x Splice kit for waterproof
What You need to get by yourself:(Package DO NOT Include)
Suitable solar panels. There’re some suggestions in the instruction book.- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.
Poly pipe from pump to water tank. ( recommend 1.25inch or over diameter poly pipe)
Wire power cable (2 wires plus earth). we recommend cable size at least chicker than the original cable in the pump.
PACKAGING PROCESS
CONTROLLER INTERNAL WIRING DIAGRAM

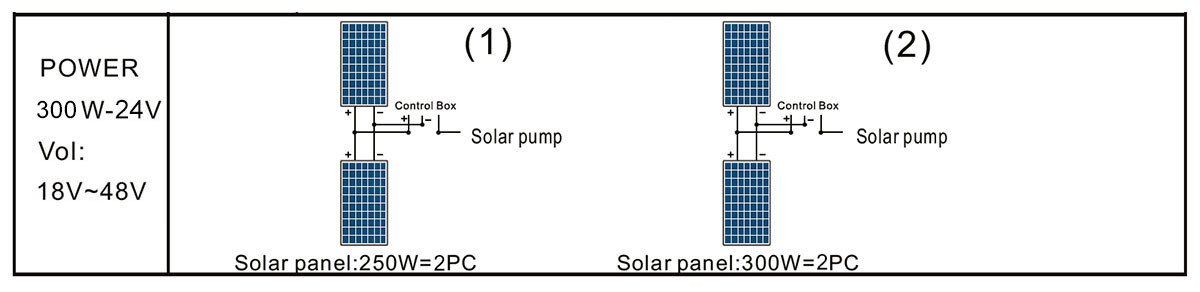

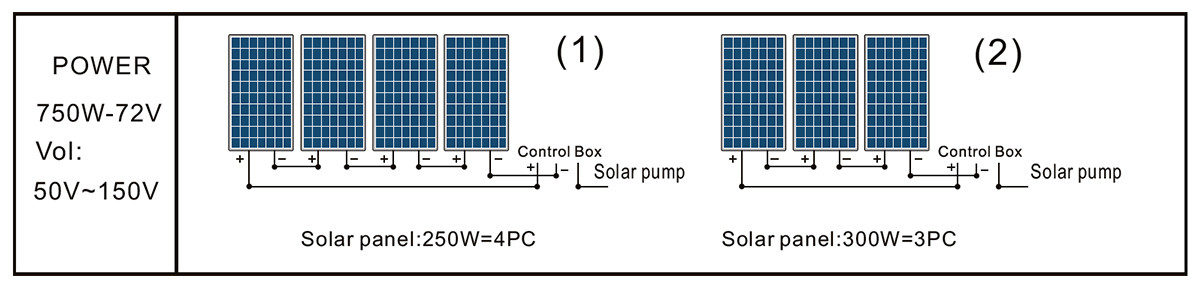

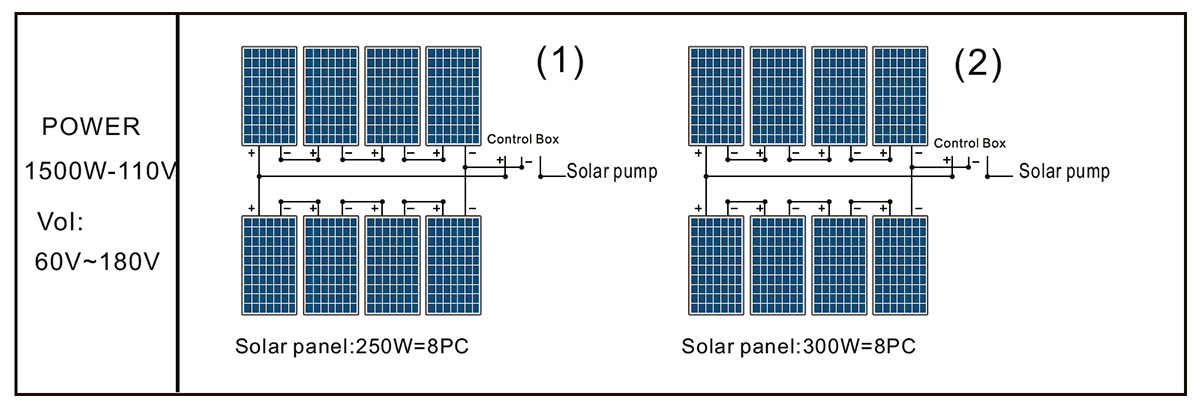

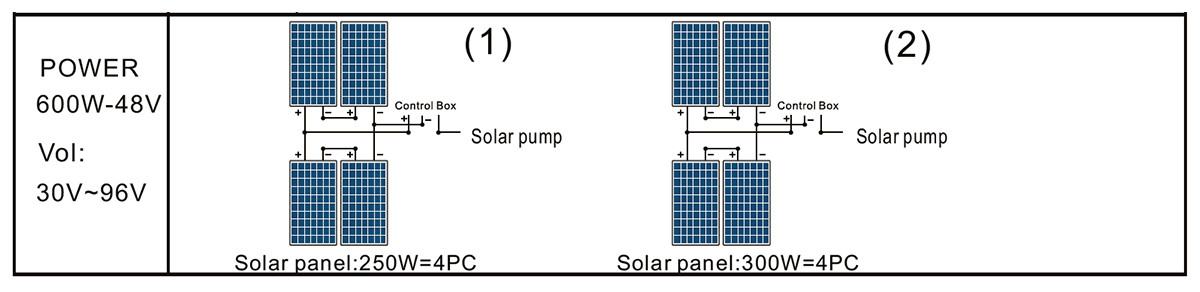

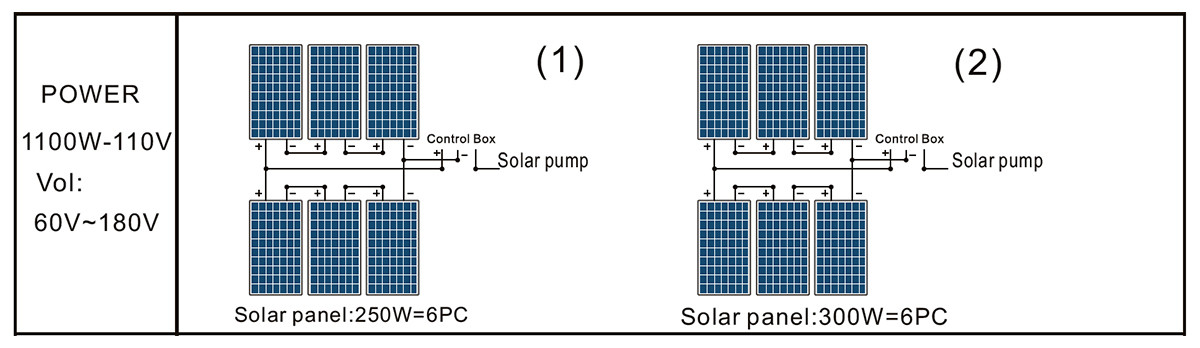

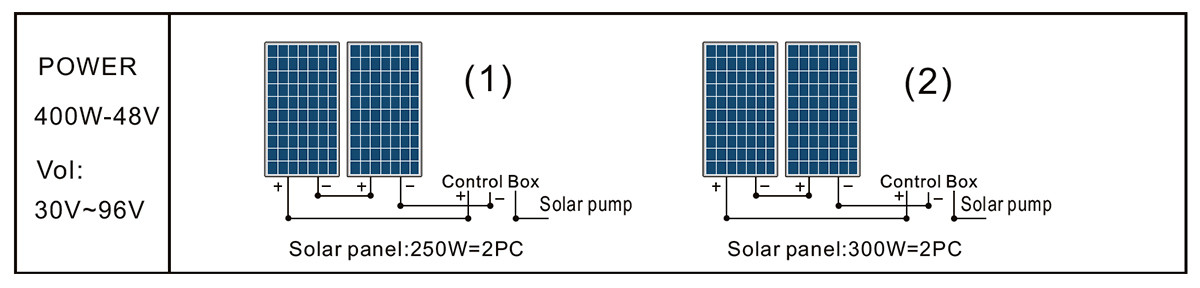

HOW TO CHOOSE SOLAR PANEL
The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 3DSC4-50-36-400 model matches the solar panel voltage between 18V～48V.
3DSC4.5-35-24-300
3DSC4.5-50-48-400
3DSC4.5-80-48-600
3DSC4.8-95-48-750
3DSC4.8-95-72-750
3DSC4.8-112-72-1100
3DSC5-112-110-1100
3DSC5-135-110-1500
