4inch solar submersible pump Large Flow Suitable for large area irrigation Factory direct sales
Categories:DC SOLAR SUBMERSIBLE PUMP
Brand:ECOCORE
Model:4DLR
Type:4 inch solar pump with plastic impeller
Pump Body Material:Stainless steel
Outlet Material:Brass
impeller Material:Plastic
Package type:wooden case
Warranty:2 years
Certificate:CE, GS, RoHS
4" PLASTIC IMPELLER SOLAR SUBMERSIBLE PUMP

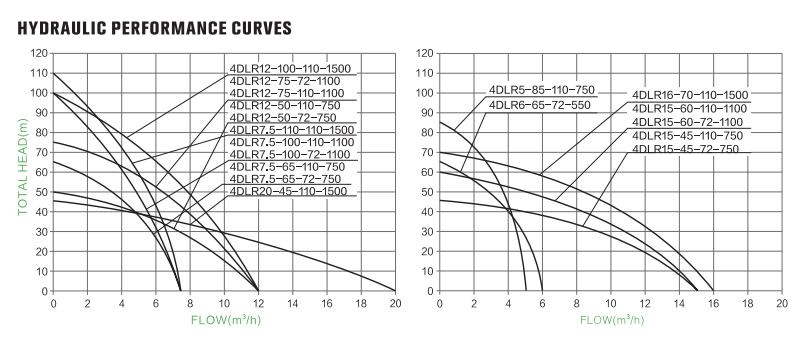

Model | Power | Voltage | Max flow(m3/h) | Max head(m) | Outlet(inch) |
4DLR5-85-110-750 | 750 | 110 | 5 | 85 | 2" |
4DLR6-65-72-550 | 550 | 72 | 6 | 65 | 2" |
4DLR7.5-65-110-750 | 750 | 110 | 7.5 | 65 | 2" |
4DLR7.5-100-72-1100 | 1100 | 72 | 7.5 | 100 | 2" |
4DLR7.5-100-110-1100 | 1100 | 110 | 7.5 | 100 | 2" |
4DLR7.5-110-110-1100 | 1100 | 110 | 7.5 | 110 | 2" |
4DLR12-50-72-750 | 750 | 72 | 12 | 50 | 2" |
4DLR12-50-110-1100 | 1100 | 110 | 12 | 50 | 2" |
4DLR12-75-72-1100 | 1100 | 72 | 12 | 75 | 2" |
4DLR12-75-110-1100 | 1100 | 110 | 12 | 75 | 2" |
4DLR12-100-110-1500 | 1500 | 110 | 12 | 100 | 2" |
4DLR15-45-72-750 | 750 | 72 | 15 | 45 | 2" |
4DLR15-45-72-750 | 750 | 72 | 15 | 45 | 2" |
4DLR15-60-72-1100 | 1100 | 72 | 15 | 60 | 2" |
4DLR15-60-110-1100 | 1100 | 110 | 15 | 110 | 2" |
4DLR16-70-110-1500 | 1500 | 110 | 16 | 70 | 2" |
4DLR20-45-110-1500 | 1500 | 110 | 20 | 45 | 2" |
4 INCH DC BRUSHLESS SOLAR SUBMERSIBLE PUMP PARAMETER
HOW TO CHOOSE A PUMP
1.Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
2.Compare your requiremt with out product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according to different folw and prices.
PRODUCT PACKAGING
What we get for you:(Package Include)
1 x 4inch DC solar Plastic impeller pump with one 2m cable
1 x Pump controler with MPPT function
1 x Stainless steel float swith (sensor for tank)
1 x Pump outlet joint connector
1 x Splice kit for cable join
1 x Splice kit for waterproof
What You need to get by yourself:(Package DO NOT Include)
Suitable solar panels. There’re some suggestions in the instruction book.- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.
Poly pipe from pump to water tank. ( recommend 1.25inch/2inch or over diameter poly pipe)
Wire power cable (2 wires plus earth). we recommend cable size at least chicker than the original cable in the pump.
PACKAGING PROCESS
CONTROLLER INTERNAL WIRING DIAGRAM

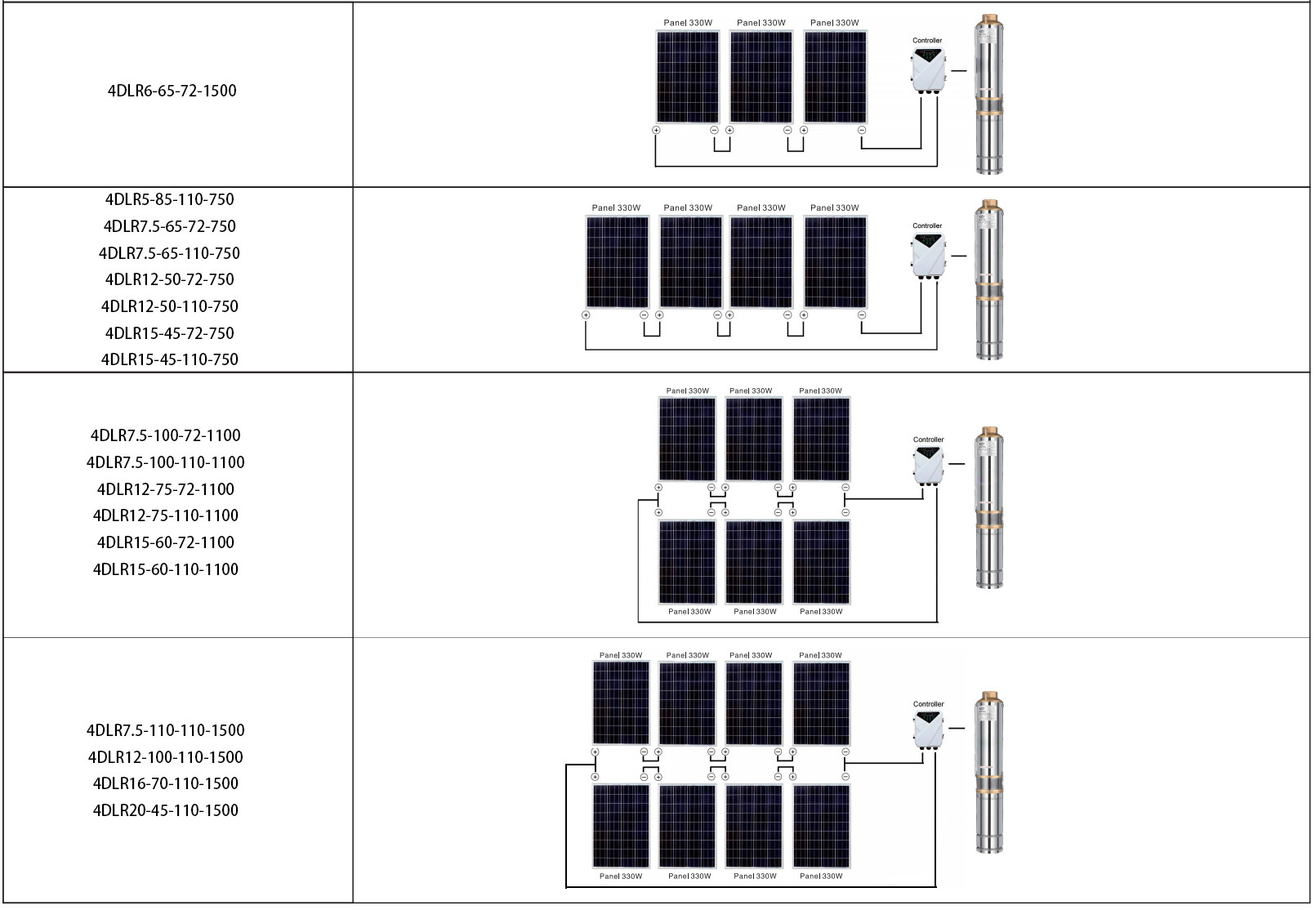

HOW TO CHOOSE SOLAR PANEL
