3 inch Screw solar bore pump 120W/210W/500W solar powered bore pump for household water supply
Categories:DC SOLAR SUBMERSIBLE PUMP
Brand:ECOCORE
Model:3DSS
Types:crew type solar submersible pump
Material:stainless steel
Package type:wooden case
Application:domestic water supply, small area irrigation
Warranty:2 years
Certificate:CE, GS, RoHS
3 INCH DC BRUSHLESS SCREW SOLAR PUMP
Solar screw pump: small power and large head, used to provide household water, animal husbandry, and small area irrigation.

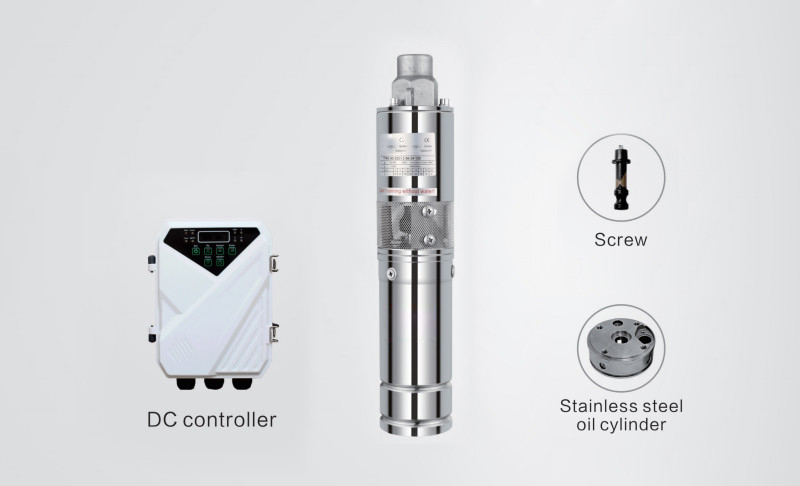

Permanent magnet DC brushless synchronous motor
Stainless steel outlet, oil cylinder, connection

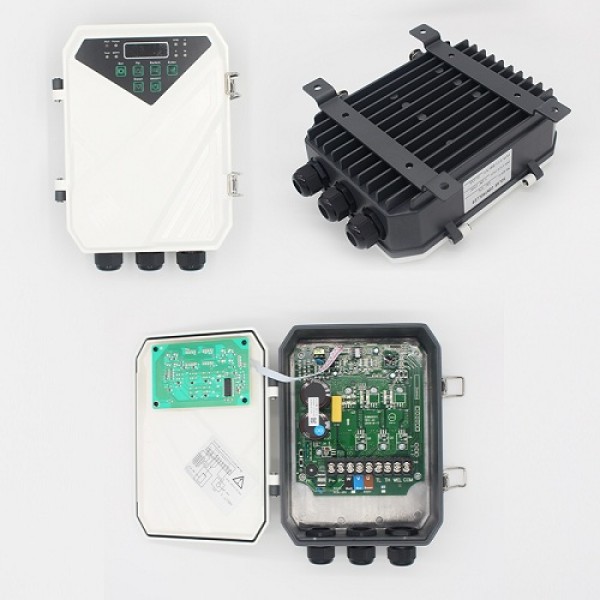

MPPT Controller
3 INCH SCREW SOLAR PUMP PARAMETE
Model | Power | Voltage | Max flow(m3/h) | Max head(m) | Outlet(inch) |
3DSS0.5-28-12-80 | 80 | 12 | 0.5 | 28 | 0.75" |
3DSS1.2-56-24-120 | 120 | 24 | 1.2 | 56 | 0.75" |
3DSS1.2-77-36-210 | 210 | 36 | 1.2 | 77 | 0.75" |
3DSS1.7-109-48-500 | 500 | 48 | 1.7 | 109 | 0.75" |
3DSS2.0-150-48-750 | 750 | 48 | 2.0 | 150 | 0.75" |
3DSS2.0-150-72-750 | 750 | 72 | 2.0 | 150 | 0.75" |
3DSS2.2-180-72-1100 | 1100 | 72 | 2.0 | 180 | 0.75" |

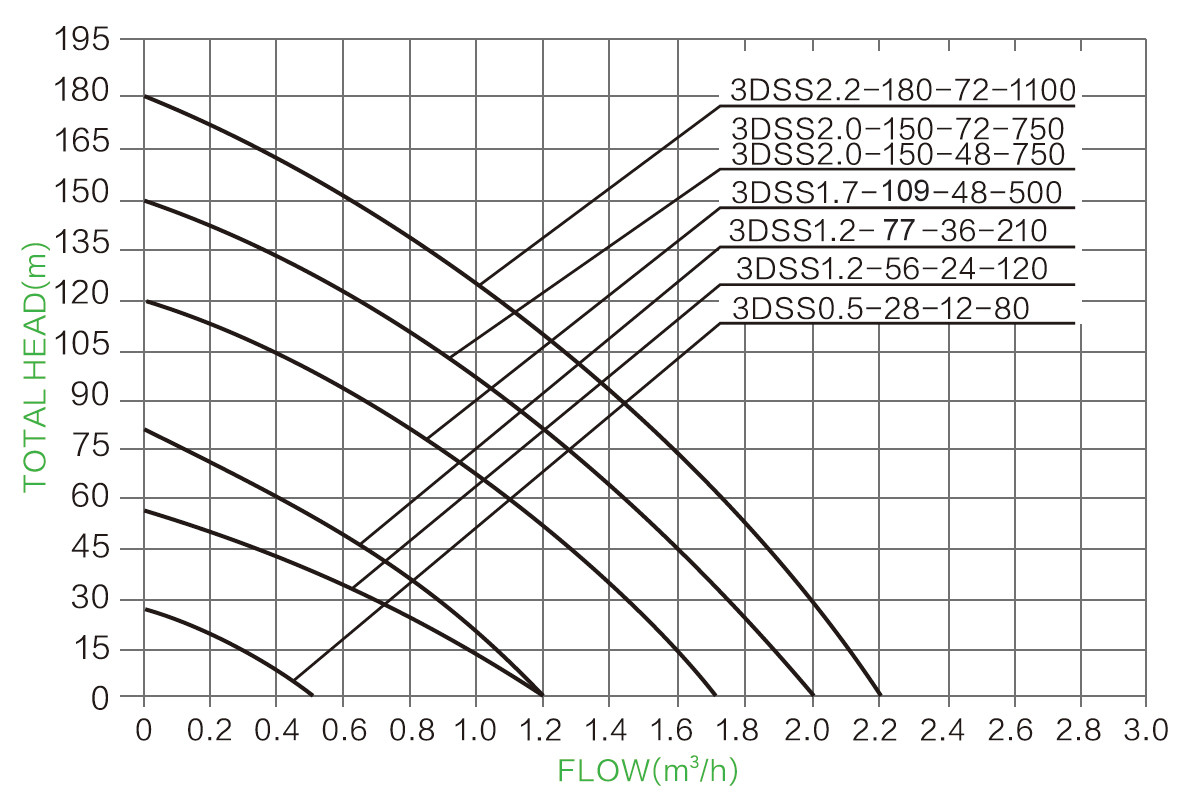

3 INCH SCREW SOLAR PUMP PARAMETER
HOW TO CHOOSE A PUMP
1.Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
2.Compare your requiremt with out product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according to different folw and prices.
PRODUCT PACKAGING

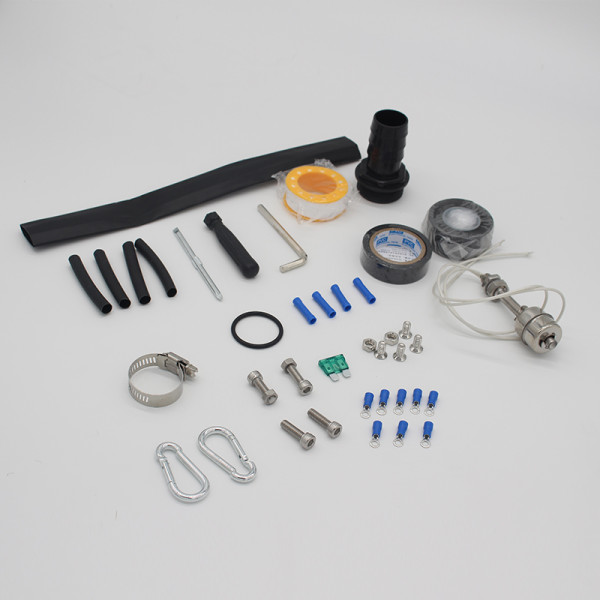

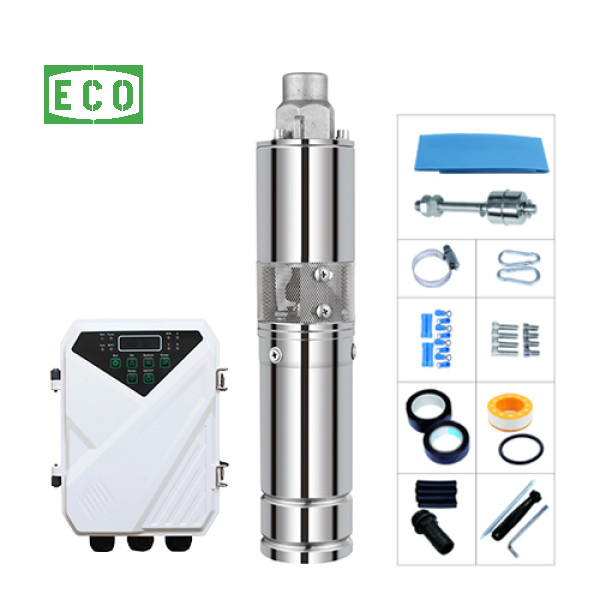

What we get for you:(Package Include)
1 x 3inch DC solar screw pump with one 2m cable
1 x Pump controler with MPPT function
1 x Stainless steel float swith (sensor for tank)
1 x Pump outlet joint connector
1 x Splice kit for cable join
1 x Splice kit for waterproof
What You need to get by yourself:(Package DO NOT Include)
Suitable solar panels. There’re some suggestions in the instruction book.- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.
Poly pipe from pump to water tank. ( recommend 1inch or over diameter poly pipe)
Wire power cable (2 wires plus earth). we recommend cable size at least chicker than the original cable in the pump.

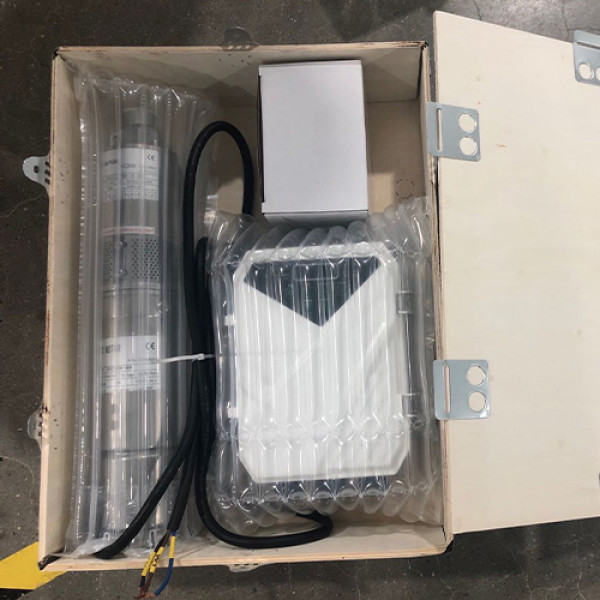

PACKAGING PROCESS
CONTROLLER INTERNAL WIRING DIAGRAM

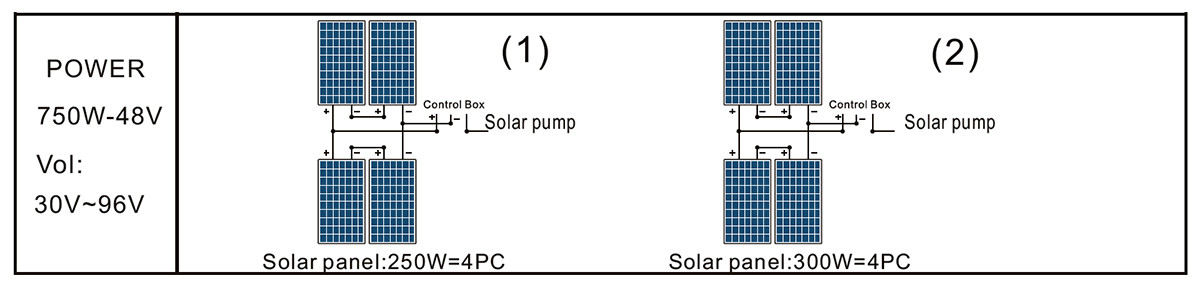

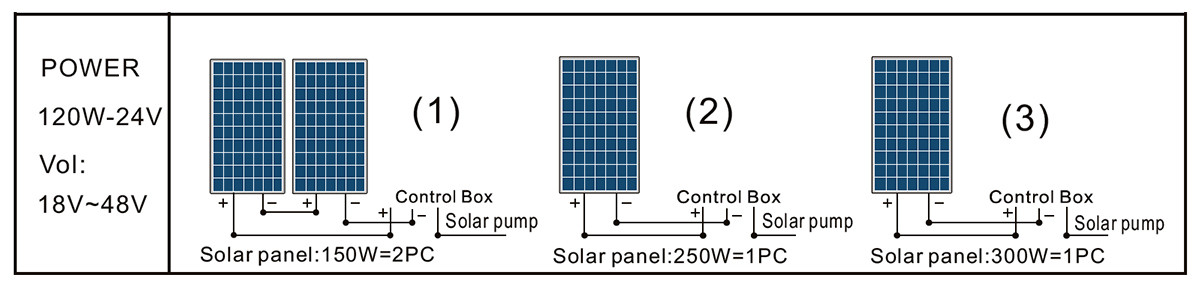

HOW TO CHOOSE SOLAR PANEL

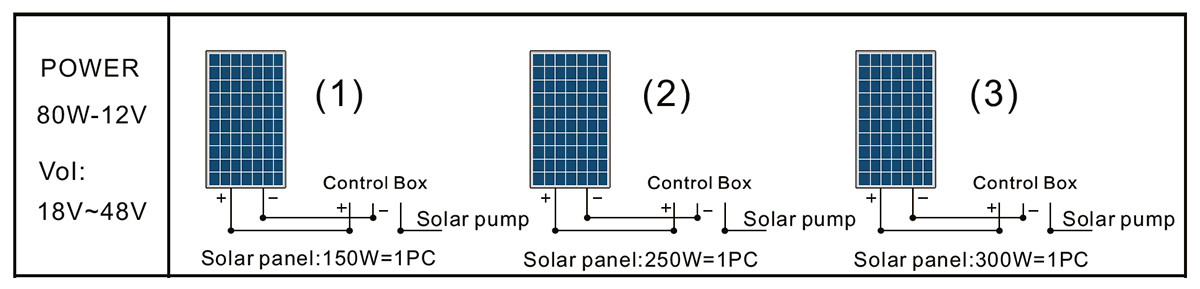

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 3DSS0.5-28-12-80 model matches the solar panel voltage between 18V～48V.
3DSS0.5-28-12-80
3DSS1.2-56-24-120

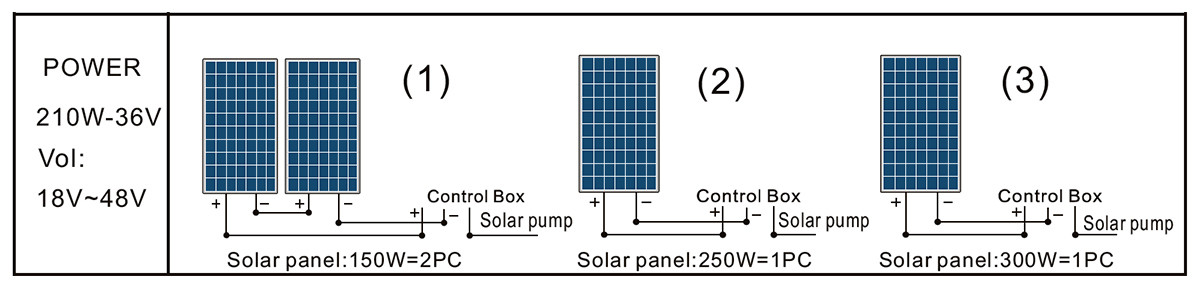

3DSS1.2-77-36-210

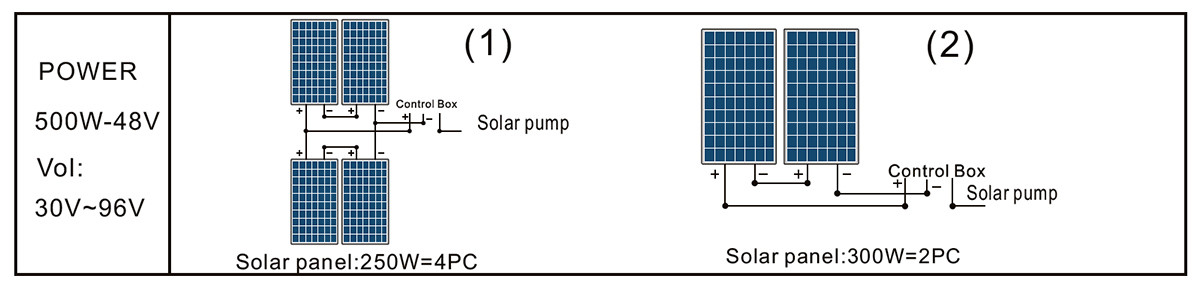

3DSS1.7-109-48-500
3DSS2.0-150-48-750

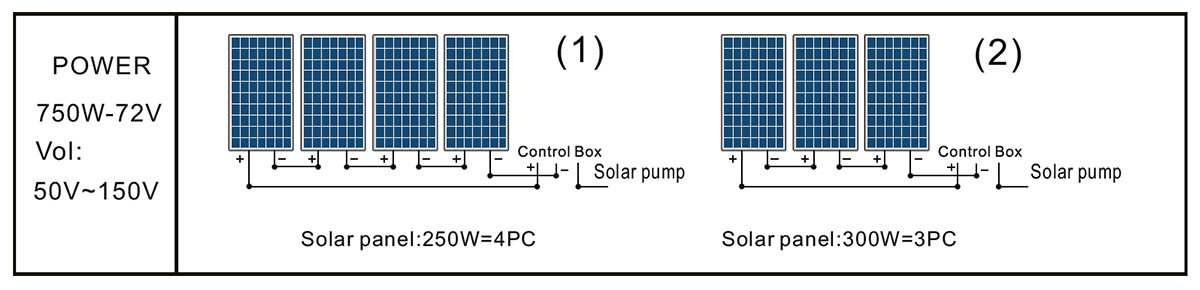

3DSS2.0-150-72-750

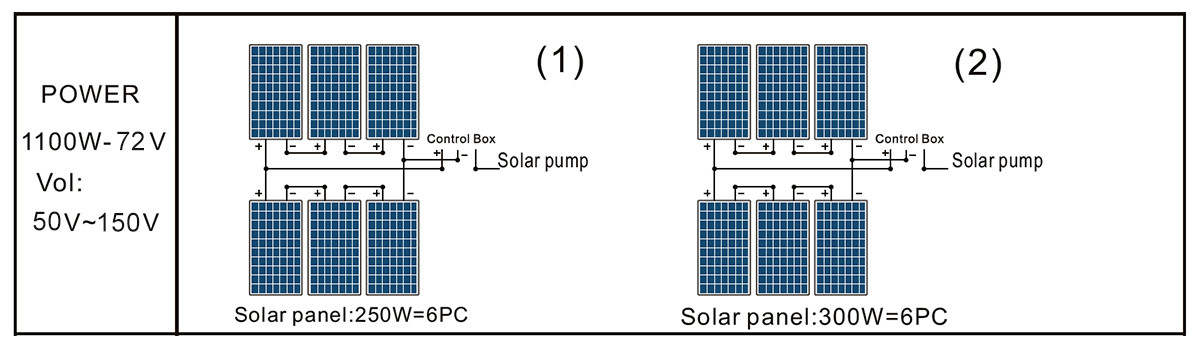

3DSS2.2-180-72-1100
