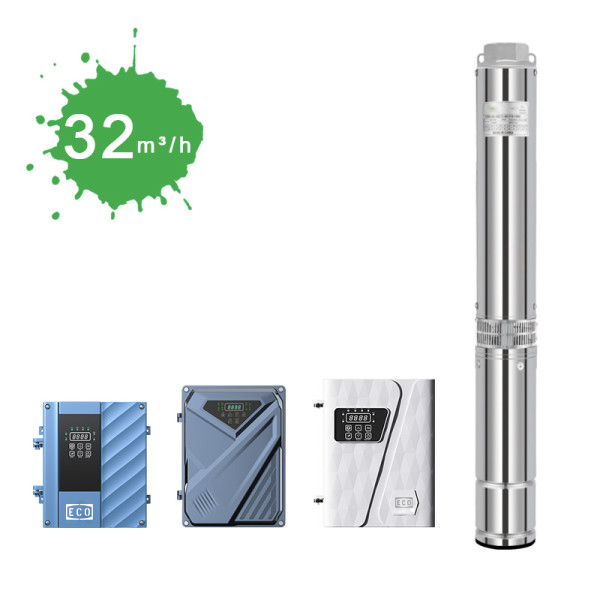

ECOCORE AC/DC Submersible Deep Well Pump for Irrigation with 32m³/h Rated Flow

6000RPM High-Speed Deep Well Pump for 32 cubic meters of water per hour (32 m³/h)

The highest rated flow rate category belongs to the high-speed deep well pump with a rated flow rate of 32 m³/h. This pump is designed to handle a water volume of 32 cubic meters per hour. It is suitable for applications with substantial water demands, such as large-scale industrial processes, water treatment plants, and municipal water supply systems.

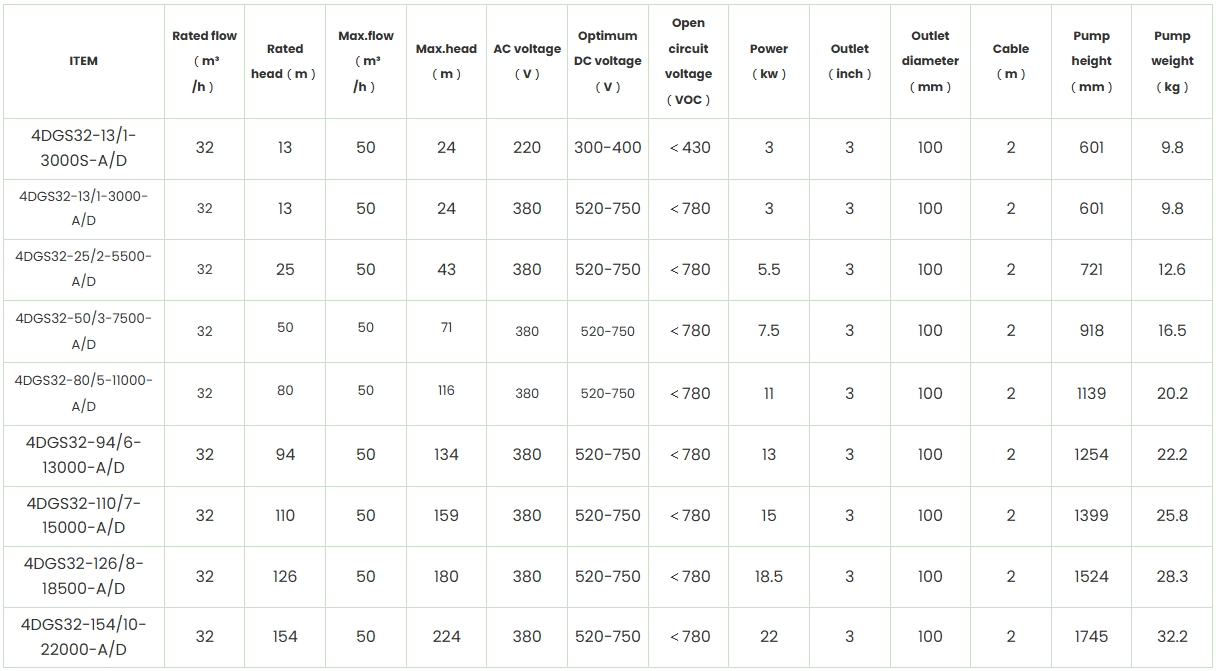

ECOCORE AC/DC Submersible Deep Well Pump for Irrigation with 32m³/h Rated Flow Technical Data

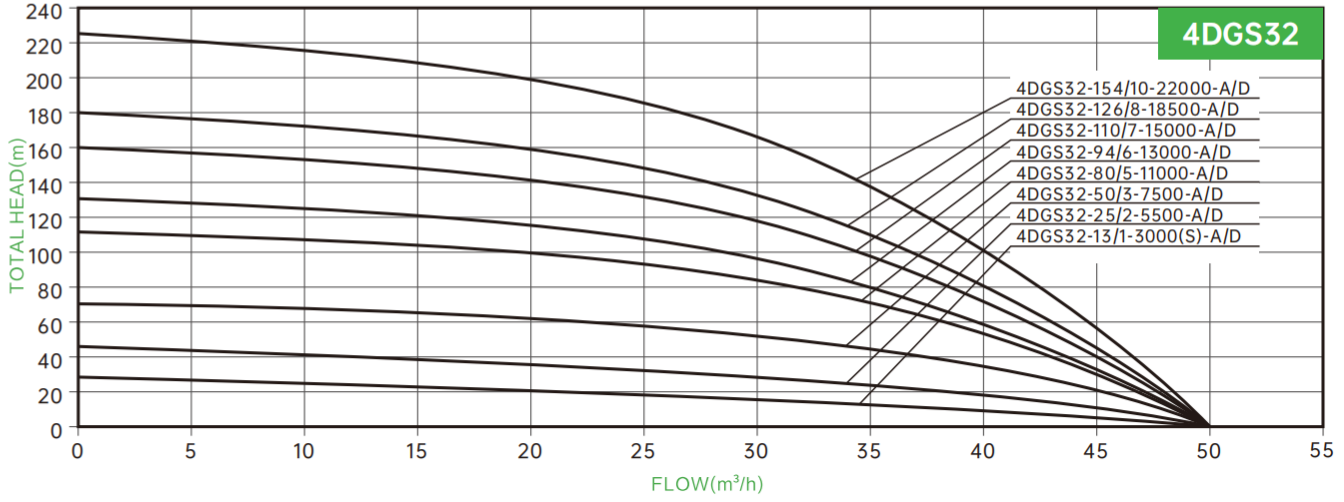

AC/DC Submersible Deep Well Pump for Irrigation with 32m³/h Rated Flow Hydraulic Performance Curves

How to choose a solar pump:

1.Confirm your technical requirements

How deep is your well (borehole)?

What is the distance between the tank and the well?

What is the height of the tank?

What is your requirement for the flow rate (L/H)?

2. Choose solar pumps according to your needs

Calculate the "actual lift needed" and find an appropriate pump.

Then choose the most suitable pump according to different flow rates and prices as well as pump materials.

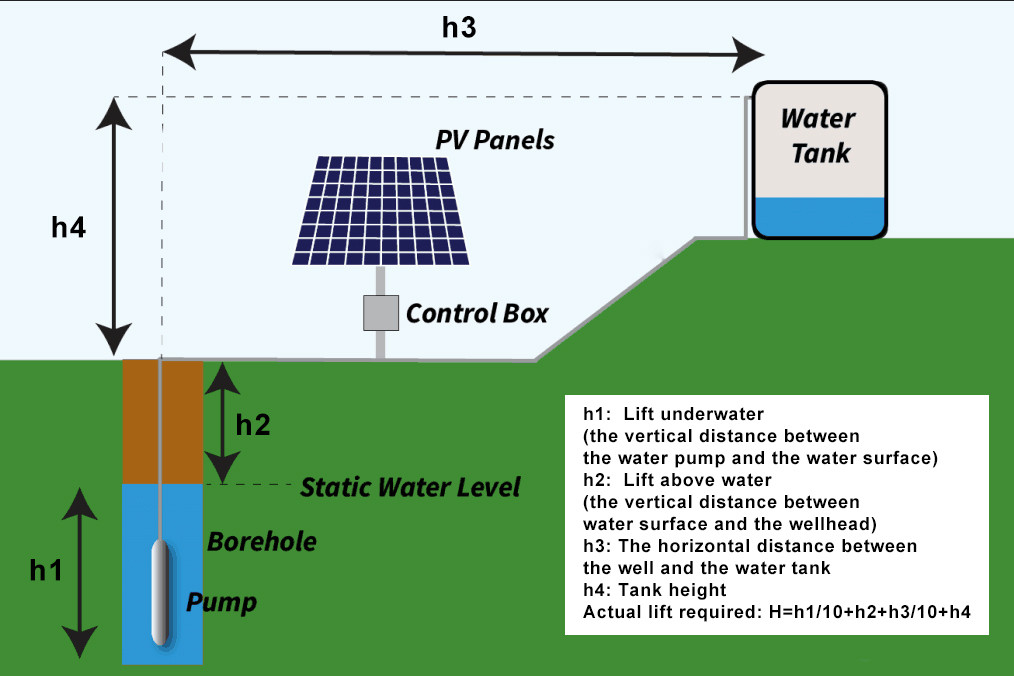

How to calculate the Head?

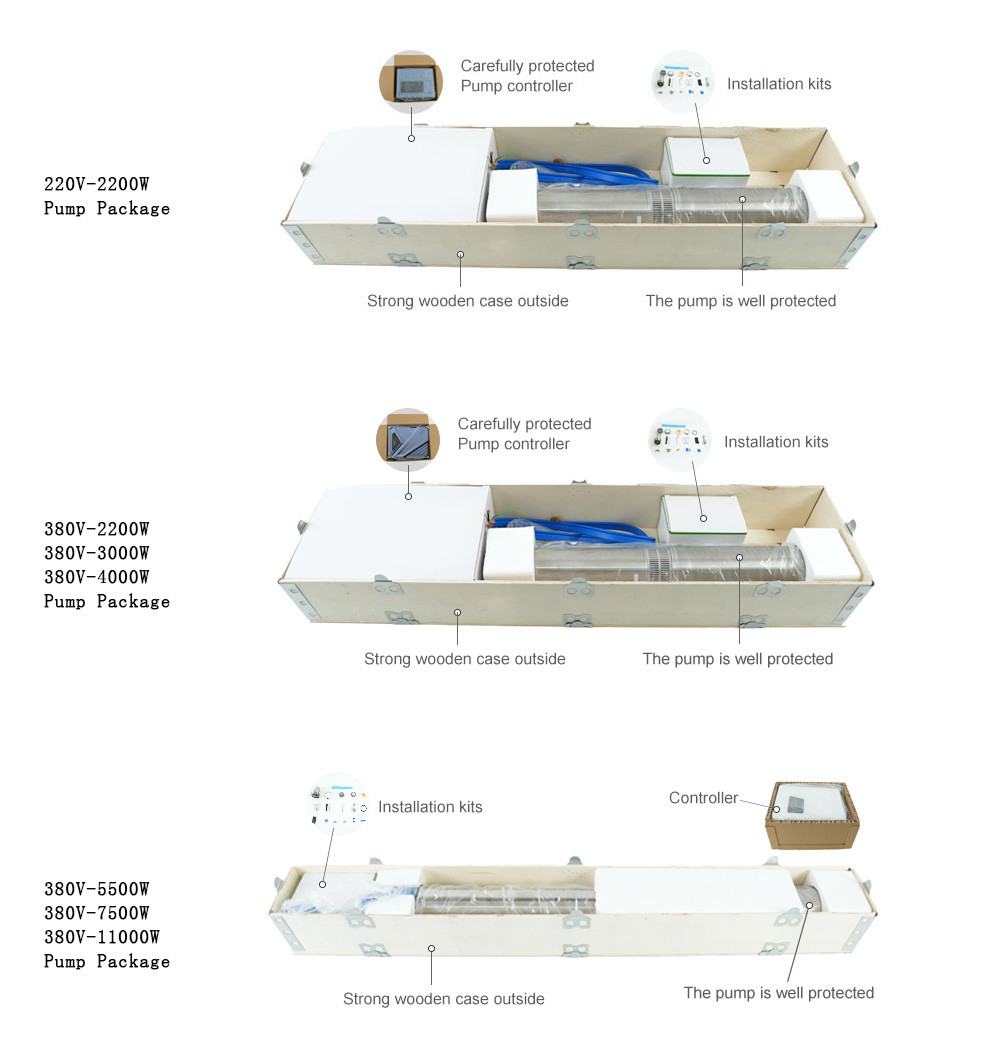

AC/DC Submersible Deep Well Pump with 32m³/h Rated Flow Packaging

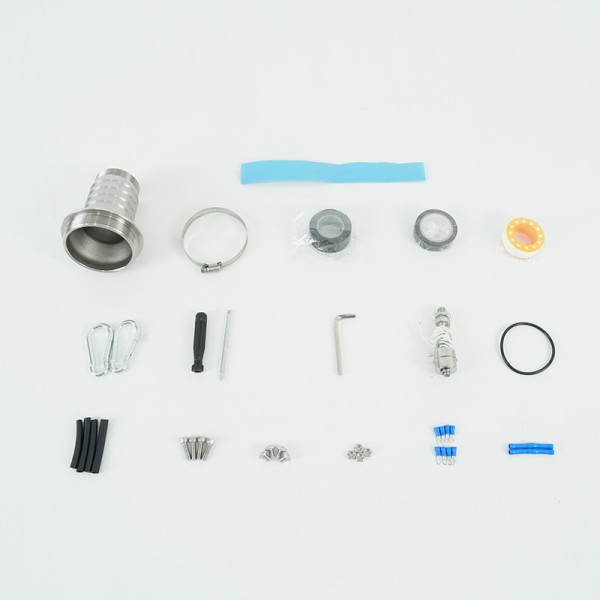

What we get for you: (Package Include)

- 1 x 4inch high-speed deep well pump with 2m cable

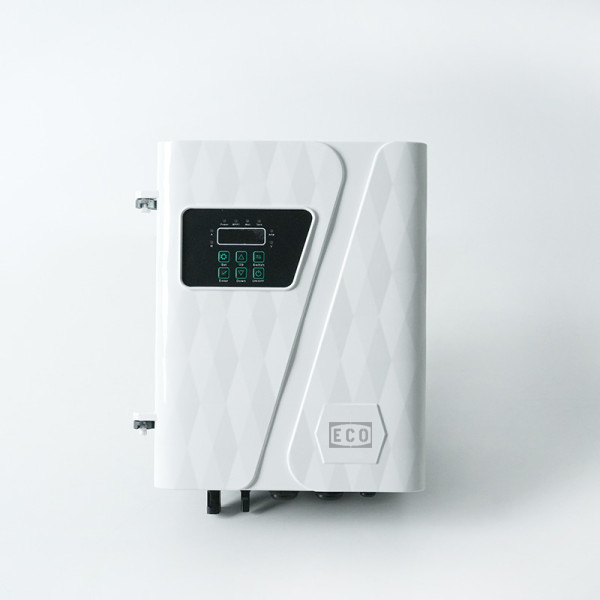

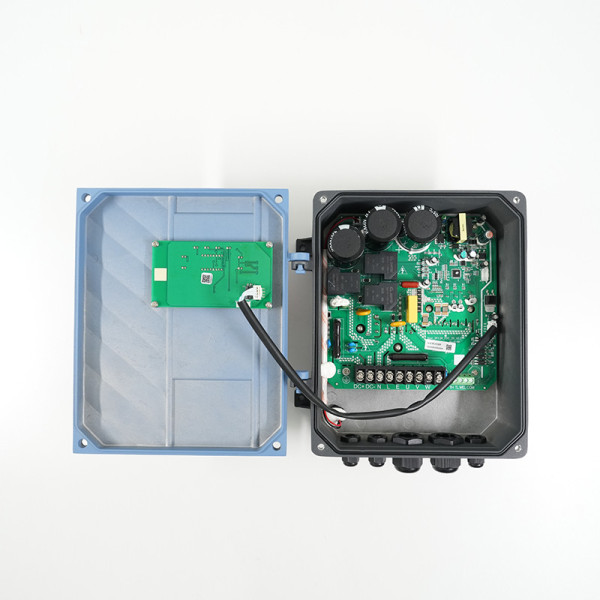

- 1 x AC/DC auto-switching controller with MPPT function

- 1 x Stainless steel or plastic float switch (sensor for tank)

- 1 x Pump outlet joint connector

- 1 x Splice kit for cable join

- 1 x Splice kit for waterproof

What You need to get by yourself: (Package DO NOT Include)

- Suitable solar panels. There’re some suggestions in the instruction book.- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up is required.

- Poly pipe from pump to the water tank. ( recommend 1.25inch or over-diameter poly pipe)

- Wire power cable (3 wires plus earth). we recommend cable size at least can't chicker than the original cable in the pump.

6000rpm High Speed Deep Well Pump with 32m³/h Rated Flow FAQ

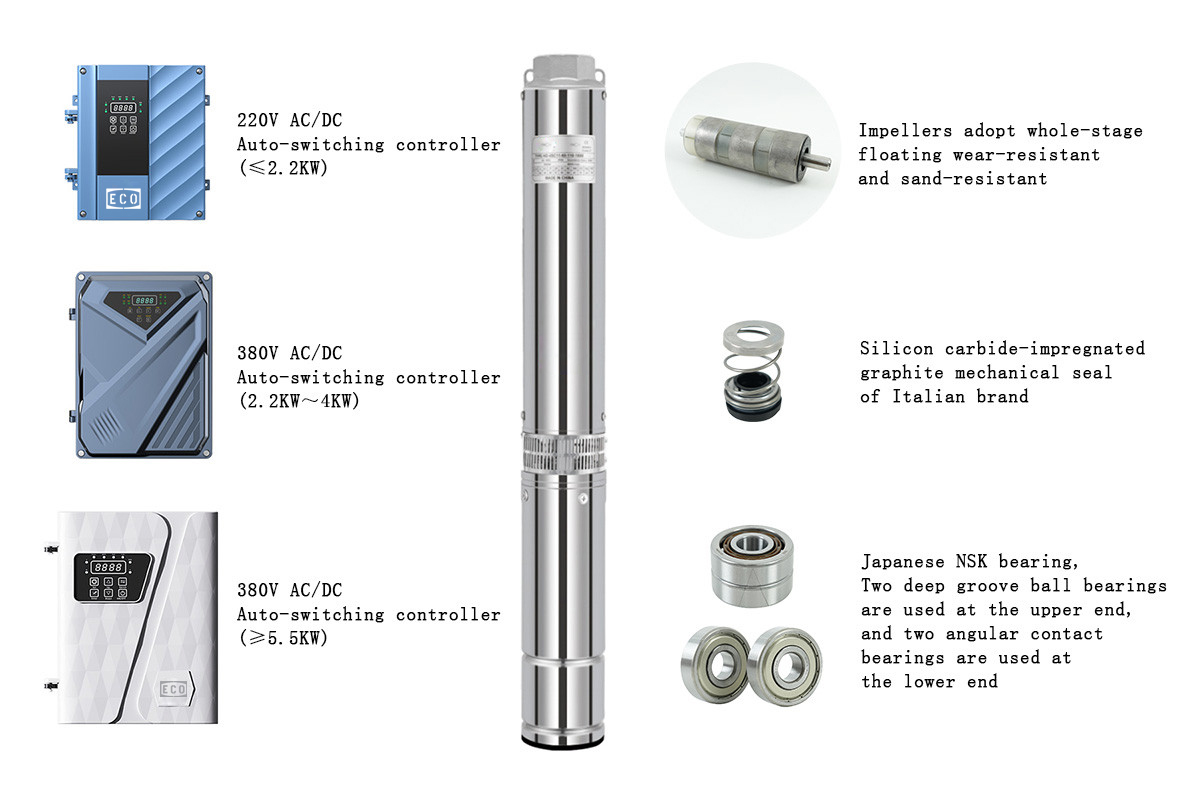

1.What is the difference between High-Speed Deep Well pump and Conventional deep well pump?

The maximum speed of the high-speed deep well pump is 6000 rpm, which is smaller and lighter than that of ordinary deep well pumps with the same performance. Low installation cost.

2.What if the product has quality problems?

2 years warranty. Any quality problem, please send the photo or video to us for checking, we will guide you to solve the problem online. If the quality problem can’t be solved by yourself, we can send the spare parts to you for replacement.

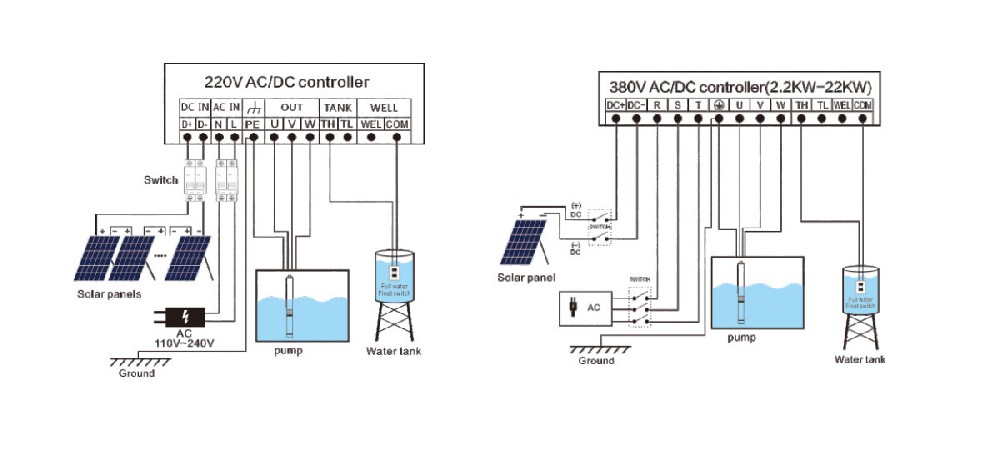

AC/DC  Auto-Switching Controller Internal Wiring Diagram

How To Choose Solar Panel

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 4DGS32-13/1-3000S-A/D model matches the solar panel voltage between 480V～780V.

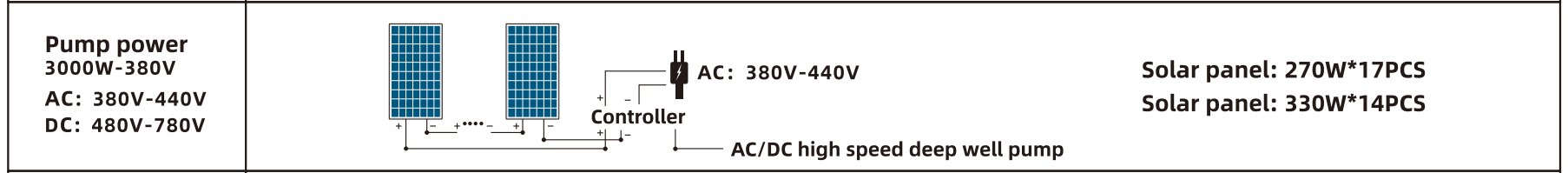

4DGS32-13/1-3000-A/D：

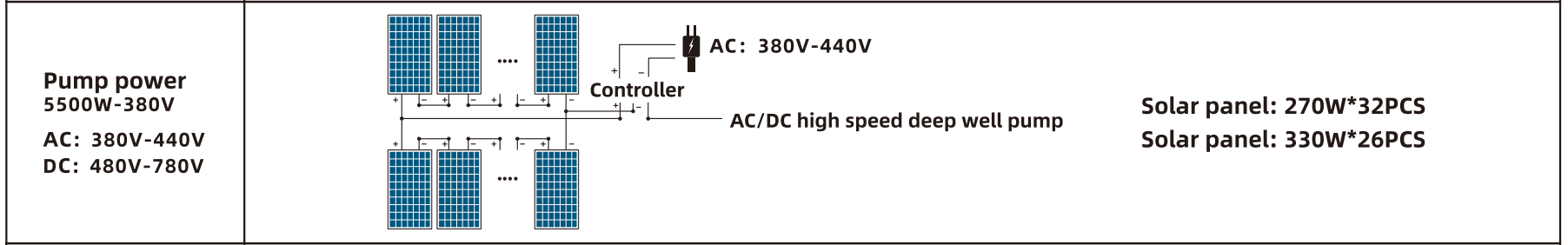

4DGS32-25/2-5500-A/D：

4DGS32-50/3-7500-A/D：

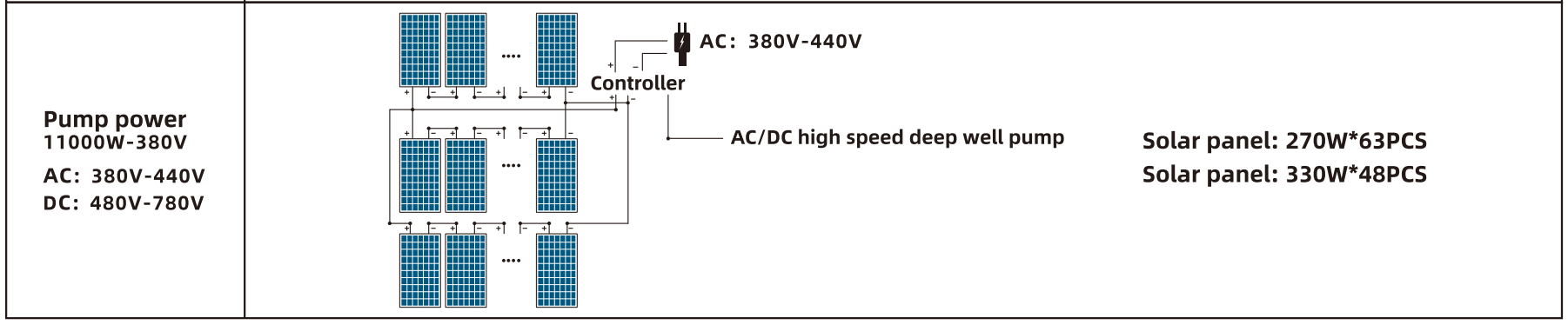

4DGS32-80/5-11000-A/D：
