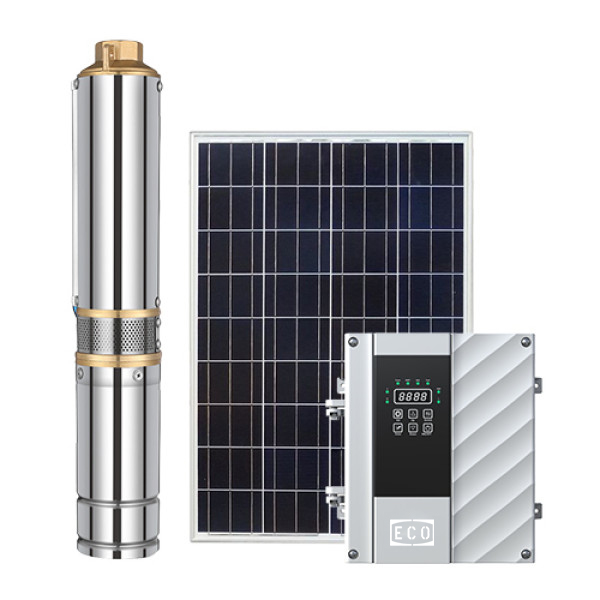

4-inch solar water pump solar submersible pump with plastic impeller DIFFUL solar pump factory solar agricultural water pumping system
Categories:HIGH VOLTAGE SOLAR SUBMERSIBLE PUMP
Brand:ECOCORE
Model:4DLR-HV
Type:solar water pump with plastic impeller
Pump Body Material:Stainless steel
Outlet Material:Brass
impeller Material:Plastic
Package type:wooden case
Warranty:2 years
Certificate:CE
4 INCH AC/DC HYBRID SOLAR WATER PUMP WITH PLASTIC IMPELLER
Model | Power (W) | Voltage (V) | Max flow (m³/h) | Max head (m) | Outlet (inch) |
4DLR5-85-110-750-HV | 750 | 110 | 5 | 85 | 1.25" |
4DLR7.5-65-110-750-HV | 750 | 110 | 7.5 | 65 | 1.5" |
4DLR7.5-100-150-1100-HV | 1100 | 150 | 7.5 | 100 | 1.5" |
4DLR7.5-110-150-1500-HV | 1500 | 150 | 7.5 | 110 | 2" |
4DLR12-75-110-1100-HV | 1100 | 110 | 12 | 75 | 2" |
4DLR12-100-150-1500-HV | 1500 | 150 | 12 | 100 | 2" |
4DLR15-45-110-750-HV | 750 | 110 | 15 | 45 | 2" |
4DLR15-55-150-1100-HV | 1100 | 150 | 15 | 55 | 2" |
4DLR16-70-150-1500-HV | 1500 | 150 | 16 | 70 | 2" |
4DLR20-45-200-1500-HV | 1500 | 200 | 20 | 45 | 2" |
4DLR22-70-300-2200-HV | 2200 | 300 | 22 | 70 | 2" |
4DLR17-95-300-2200-HV | 2200 | 300 | 17 | 95 | 2" |

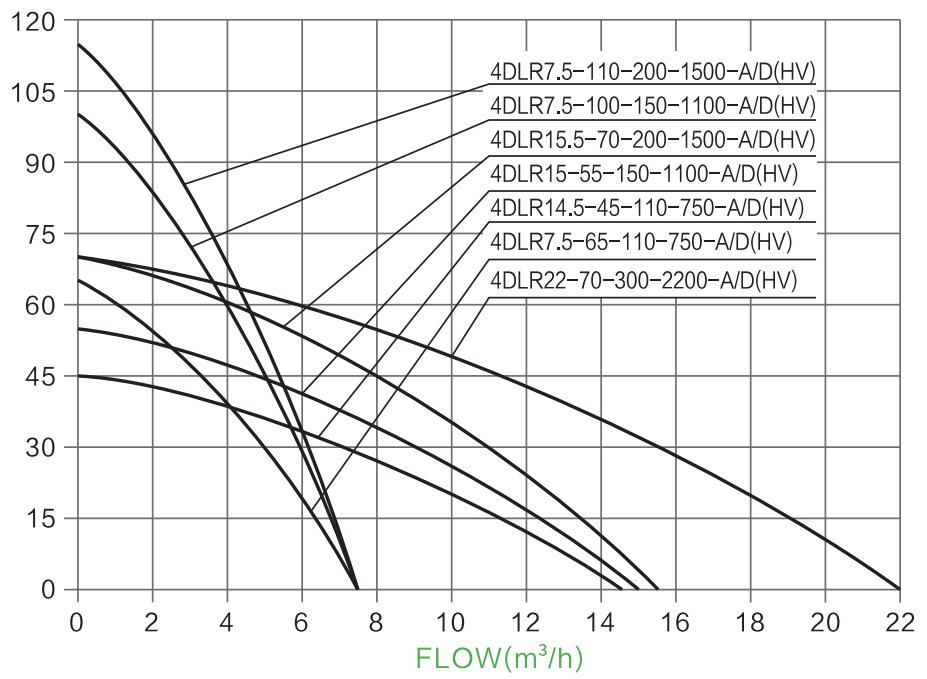

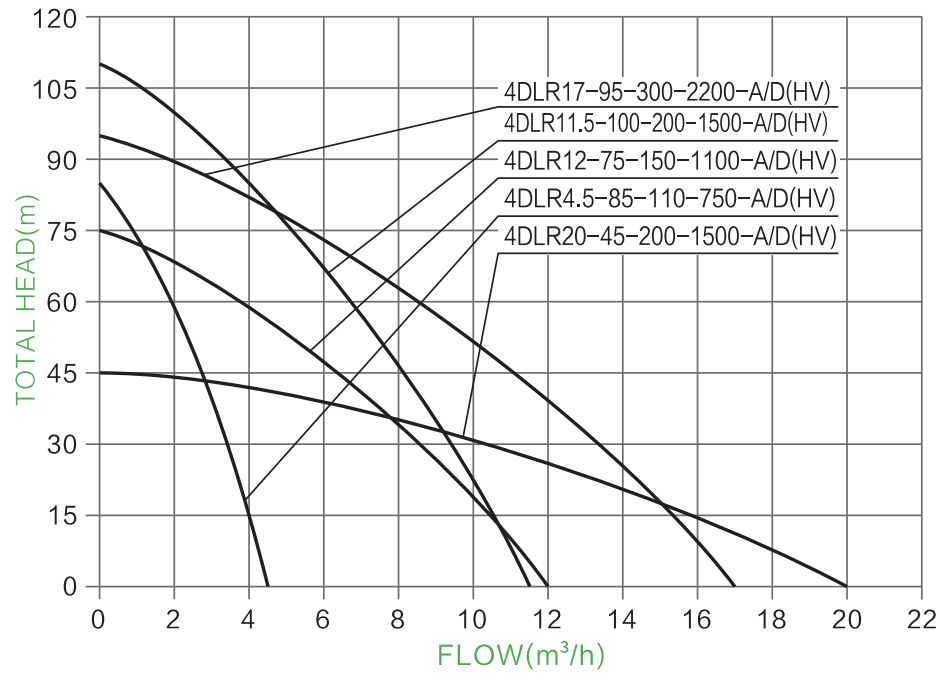

4 INCH AC/DC PLASTIC IMPELLER SOLAR WATER PUMP PARAMETER
HOW TO CHOOSE A PUMP
Confirm you technical requirement
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requirement with out product

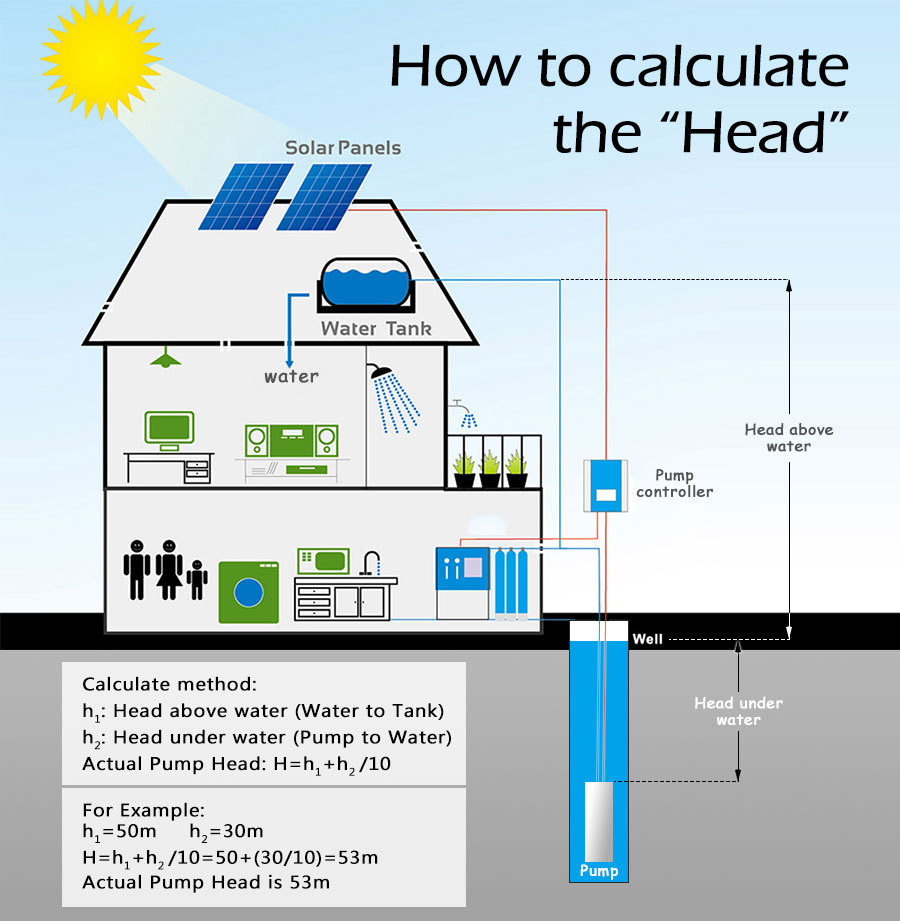

Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according to different folw and prices.

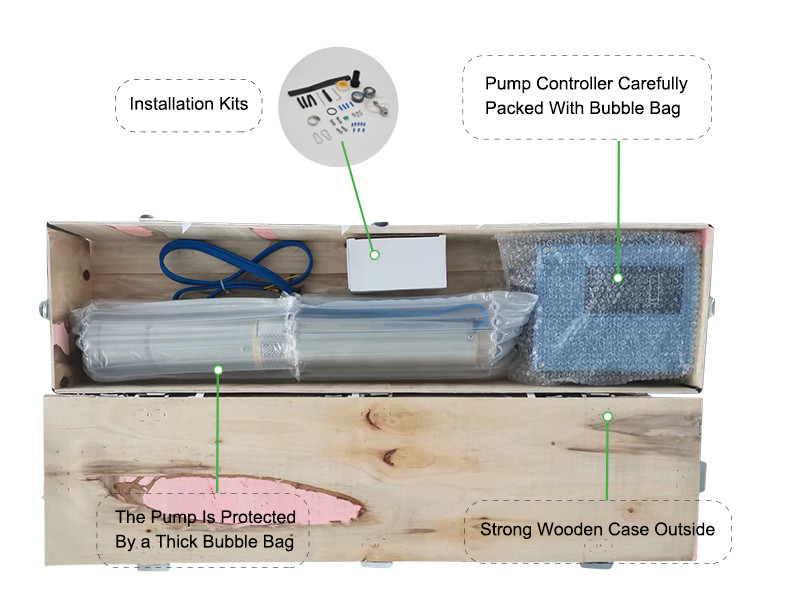

PRODUCT PACKAGING

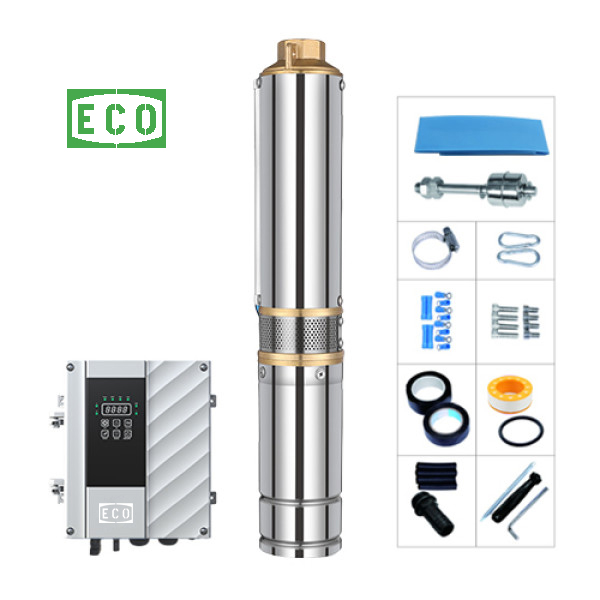

What we get for you:(Package Include)
1 x 4inch solar Plastic impeller submersible pump with one 2m cable

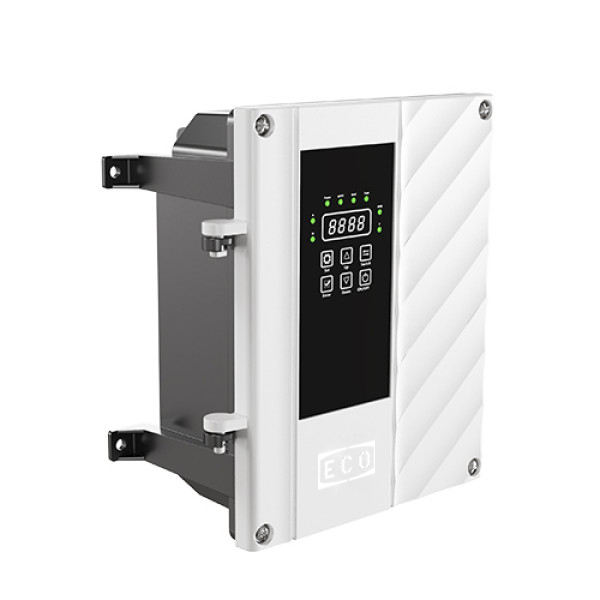

1 x DC Pump controller with MPPT function
1 x Stainless steel float switch (sensor for tank)

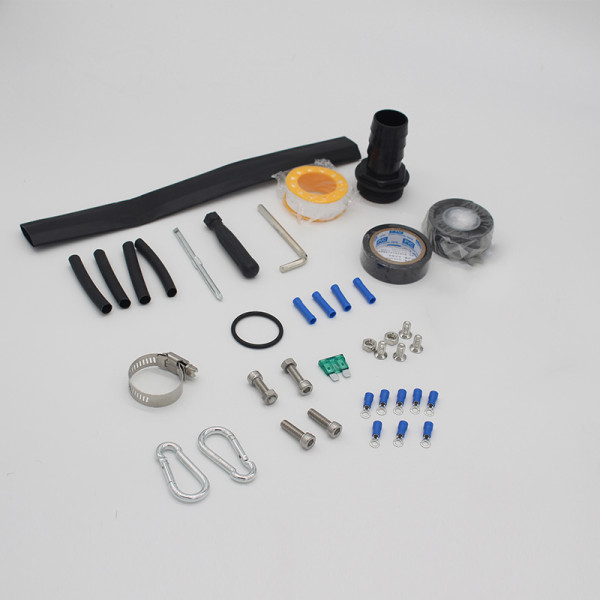

1 x Pump outlet joint connector
1 x Splice kit for cable join
1 x Splice kit for waterproof
What You need to get by yourself:(Package DO NOT Include)
Suitable solar panels. There’re some suggestions in the instruction book.- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.
Poly pipe from pump to the water tank. ( Recommend 1.25/1.5/2inch or over diameter poly pipe)
Wire power cable (3 wires plus earth). we recommend cable size at least the same as the original cable in the pump.

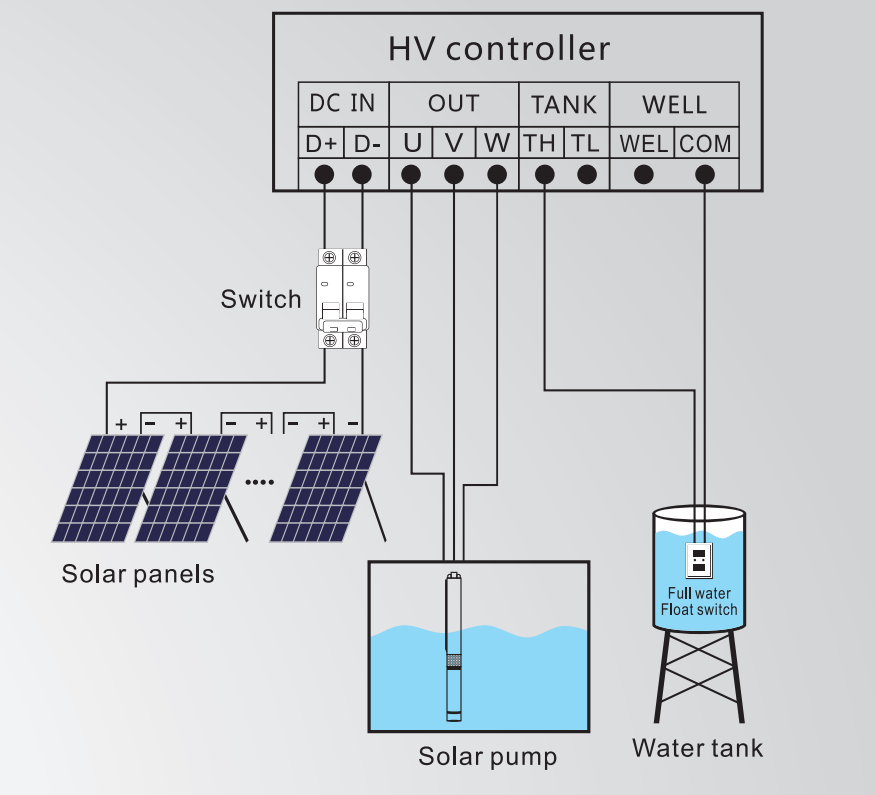

CONTROLLER INTERNAL WIRING DIAGRAM

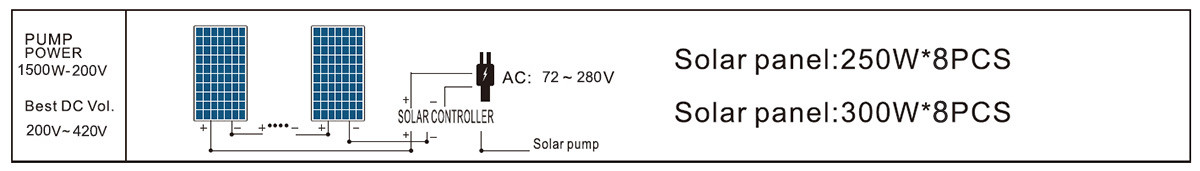

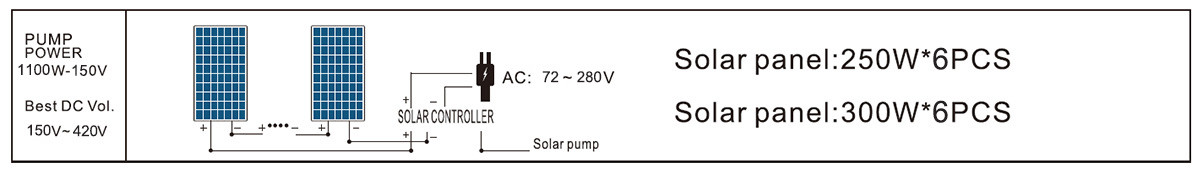

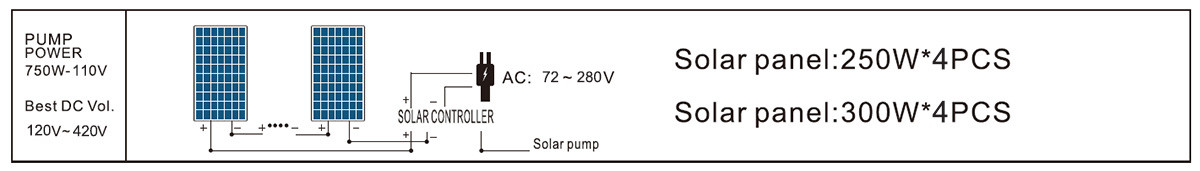

HOW TO CHOOSE SOLAR PANEL
The solar PV system voltage needs to meet the voltage range in the figure below. For example, The 4DLR4.5-85-110-750-HV model matches the solar panel voltage between 80V～420V.
4DLR4.5-85-110-750-HV
4DLR7.5-65-110-750-HV
4DLR7.5-100-150-1100-HV
4DLR12-75-150-1100-HV
4DLR14.5-45-110-750-HV
4DLR15-55-150-1100-HV
4DLR15.5-70-200-1500-HV
4DLR11.5-100-200-1500-HV
4DLR7.5-110-200-1500-HV
4DLR20-45-200-1500-HV
4DLR22-70-300-2200-HV
4DLR17-95-300-2200-HV
