500W swimming pool solar pump pool heater sand filter pool price
Categories:DC SOLAR POOL PUMP
Brand:ECOCORE
Model:DLP15-14-48-500
Type:solar pool pump
Materia:lPlastic
Application:Swimming pool, water park
Voltage:DC
Package type:wooden case
Warranty:2Year
Standard or nonstandard:Standard
Certificate:CE, GS, RoHS

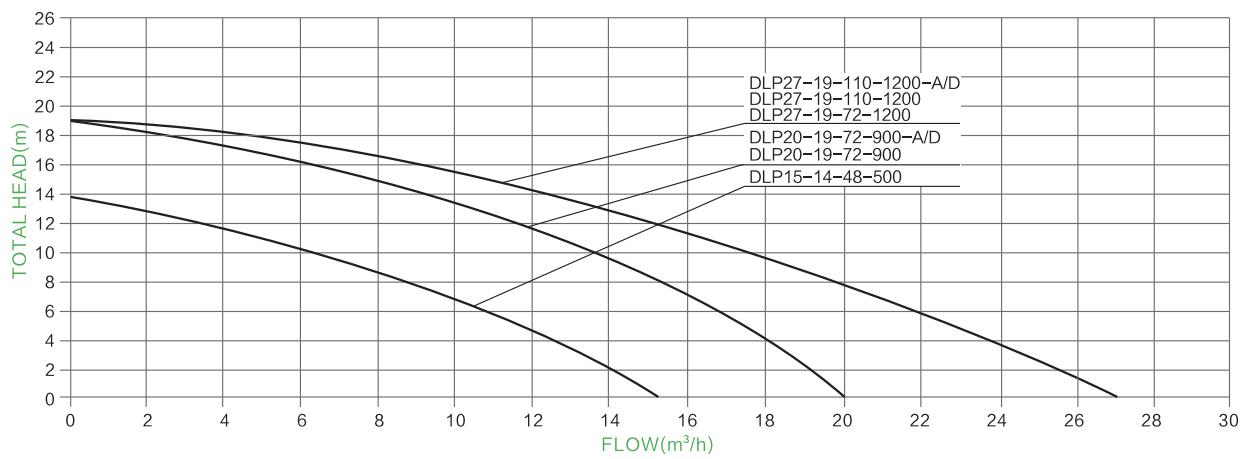

500W SOLAR SWIMMING POOL PUMP PARAMETE
Model | Power | Voltage | Max flow(m3/h) | Max head(m) | Outlet(inch) |
DLP15-14-48-500 | 500 | 48 | 15 | 14 | 2" |
DLP20-19-72-900 | 900 | 72 | 20 | 19 | 2" |
DLP27-19-72-1200 | 1200 | 72 | 27 | 19 | 3" |
DLP27-19-110-1200 | 1200 | 110 | 27 | 19 | 3" |
500W SOLAR SWIMMING POOL PUMP PARAMETER
HOW TO CHOOSE A PUMP
1.Confirm you technical requiremt
How big is your pool?
What's you requirement about the flow(m³/h)?
2.Compare your requiremt with out product
Calculate"The flow you need"and find the proper pump with the right flow.
Then you can choose the pump you want according todifferent flow and prices.
Advantage of solar swimming pool system
With the mass emission of greenhouse gas like carbon dioxide, global warming is a growing problem to face. Renewable energy is thus greatly promoted and applied in developed countries. Government subsidies renewable energy users or allows free tax policy so as to reduce consumption of those non-renewable energy like oil, coal. This significantly helps to save energy and protect environment.
ECOCORE Solar circulation system is featured with modular design, zero noise and pollution free. It is fully safe and reliable, very easy for maintenance. No battery is required.
ECOCORE Solar circulation system not only benefits the domestic and commercial users with purified water and advanced swimming pool circulation mode, but also reduces electricity cost with free energy.
PRODUCT PACKAGING
What we get for you:(Package Include)
1 x 500W DC solar pool pump with one 2m cable
1 x Pump controler with MPPT function
1 x Pump outlet joint connector
1 x Splice kit for cable join
1 x Splice kit for waterproof
Bolts for fixing and others
What You need to get by yourself:(Package DO NOT Include)
Suitable solar panels. There’re some suggestions in the instruction book.
Poly pipe from pump to water tank. ( recommend 2inch or over diameter poly pipe)
Wire power cable (2 wires plus earth). we recommend cable size at least chicker than the original cable in the pump.
CONTROLLER INTERNAL WIRING DIAGRAM
HOW TO CHOOSE SOLAR PANEL

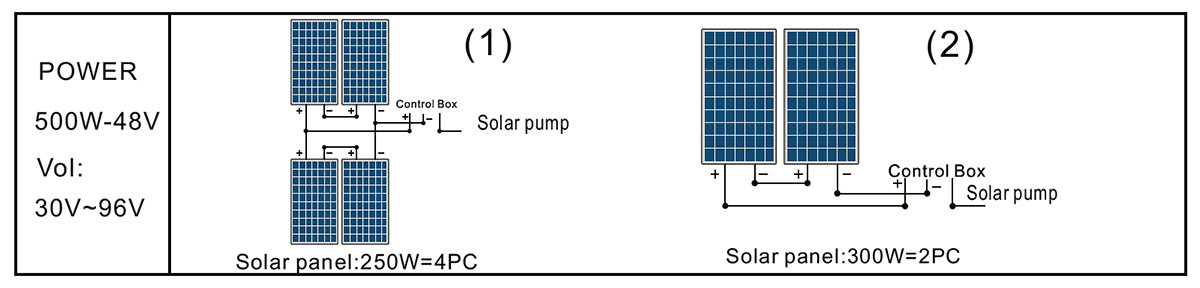

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The DLP15-14-48-500 model matches the solar panel voltage between 30V～96V.
DLP15-14-48-500

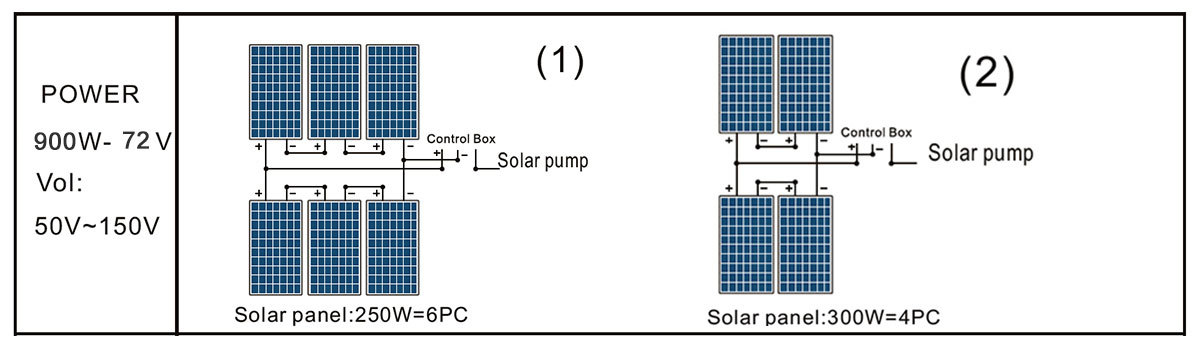

DLP20-19-72-900

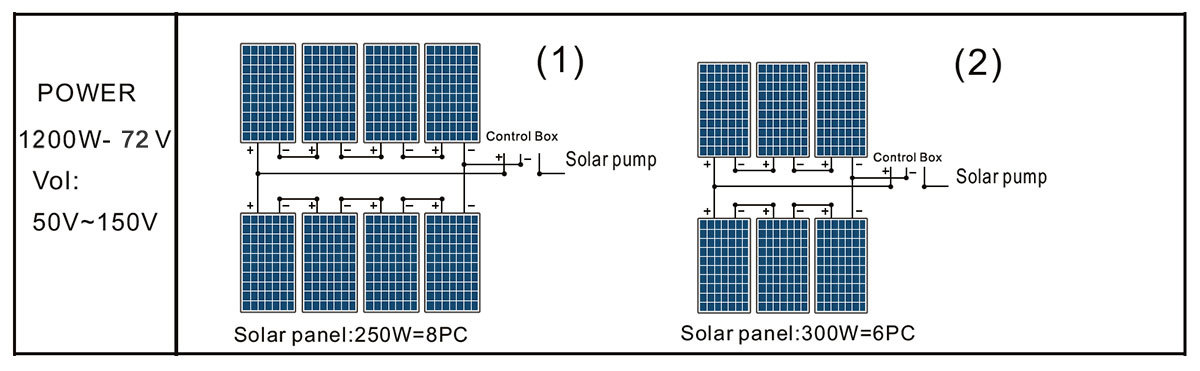

DLP27-19-72-1200

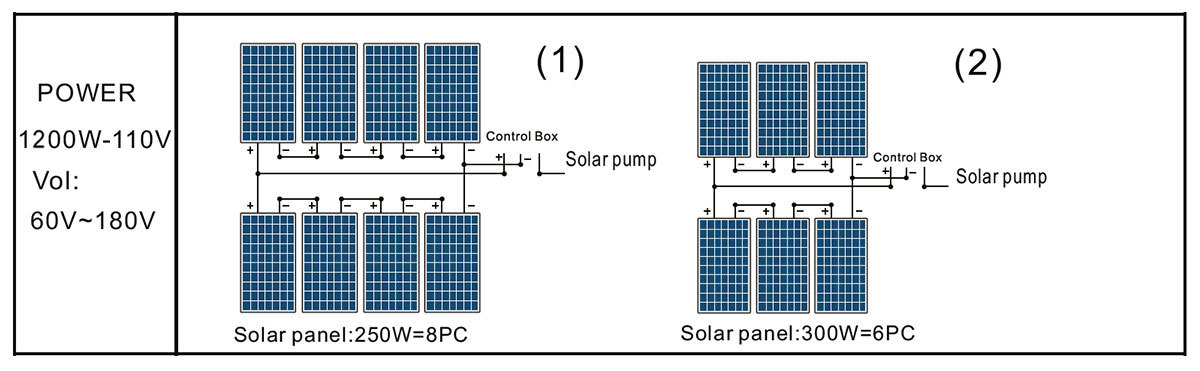

DLP27-19-110-1200
