Solar pond aerator | DC MPPT Controller | fish pond oxygenation | solar aerator manufacturer
Categories:DC SOLAR AERATOR
Brand:ECOCORE
Model:DSA
Type:SOLAR AERATOR
Material:stainless steel/plastic
Package type:Wooden case
Warranty:2 years
Certificate:CE, ISO9001
Application:fish pond oxygenation；river management

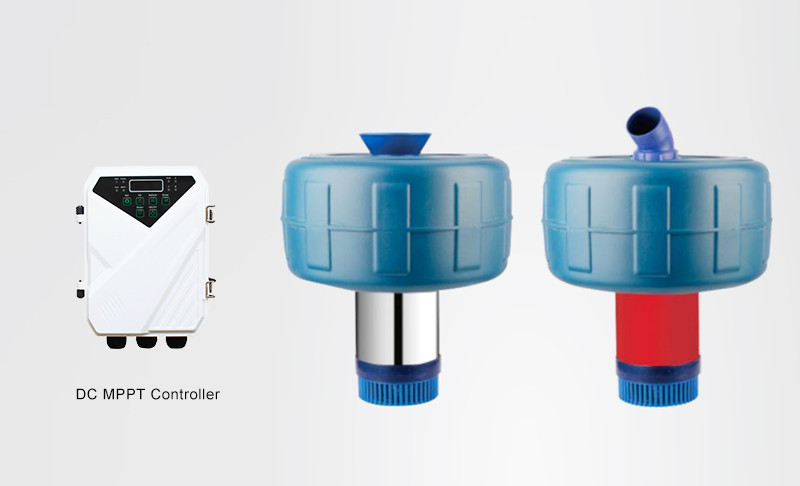

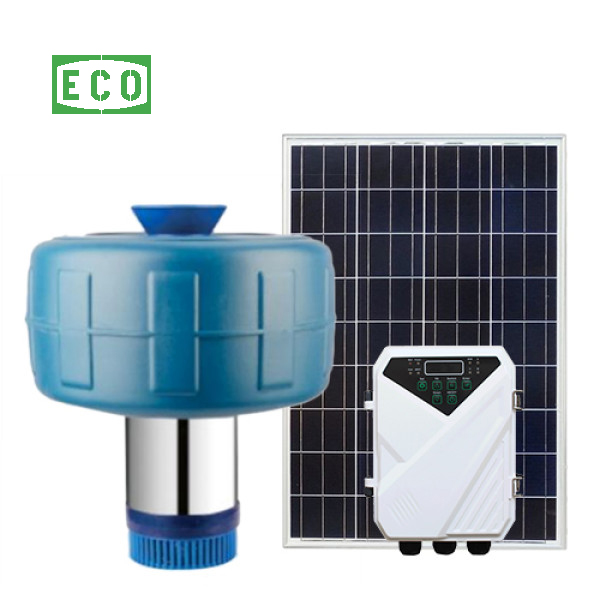

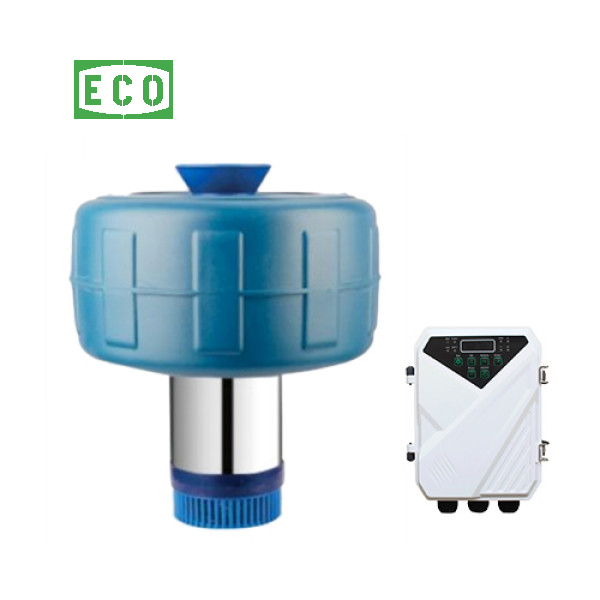

DC Brushless Motor Solar Air Oxygenator
DC MPPT controller：
Waterproof grade: IP65
Ambient temperature: -15℃~60℃
SMPPT Voltage Range(V):
DF-48:60-90
DF-72:90-120
DF-110:110-150
Solar air oxygenator：

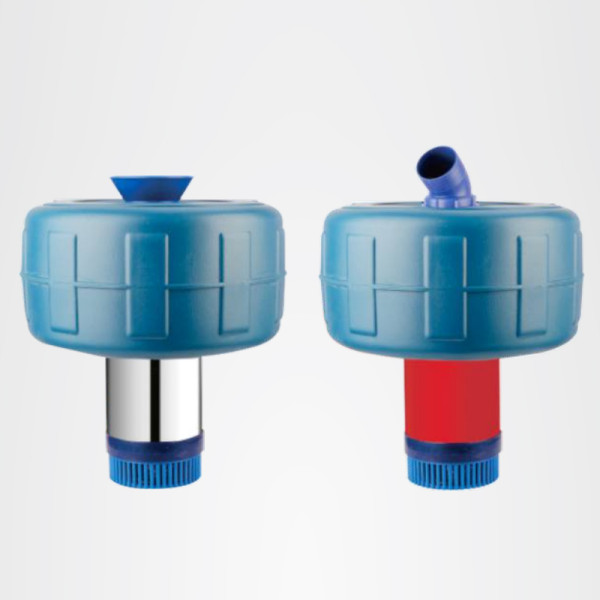

Solar aerator：
Plastic and stainless steel are two materials that can choose.
Two outlets are provided, which can be used for aeration or irrigation.
Small and convenient, easy to install. High lift, large water volume, easy to increase oxygen content.
The direct current generated by the solar panel directly drives the water pump to work. The system does not need expensive batteries, grid connections, or generators.
DC Brushless Motor Solar Aerator Technical Data
ITEM | Voltage | Best input Voltage(DC) | Power | Max.flow | Max.head | Outlet | Solar panel | |
Open circuit voltage(VOC) | Power | |||||||
DSA15-4.5-48-370 | 48V | 60-90V | 370W | 15m3/h | 4.5m | 3" | < 105V | 1.3*Pump Power |
DSA25-5-48-750 | 48V | 60-90V | 750W | 25m3/h | 5m | 3" | < 105V | 1.3*Pump Power |
DSA30-7-72-1100 | 72V | 90-120V | 1100W | 30m3/h | 7m | 3" | < 160V | 1.3*Pump Power |
DSA40-6-110-1500 | 110V | 110-150V | 1500W | 40m3/h | 6m | 3" | < 210V | 1.3*Pump Power |
Why to choose a solar aerator:
Pond aeration involves adding or maintaining oxygen levels in your pond to enhance the quality of the water.
pond aeration has got several benefits on your pond.Your fish will survive, and no odors will come out of your pond due to contaminants and other non-organic material.
It is hard to install an electrically powered aeration system where it is not economical to get to a power source in an isolated pond or lake.
The emergence of solar-powered alternatives means that you can aerate your pond using solar panels thanks to the free energy from the sun’s rays.
If you are determined to reduce the ecological footprint and only use renewable energy sources, then the solar pond aerator is what you need. The cost of running this system is very minimal, making it practical for almost any place.
"What we get for you: (Package Include)"
- 1 x DC brushless motor solar aerator
- 1 x Round buoy
- 1 x DC controller with MPPT function
- 1 x Product Manual
"What You need to get by yourself: (Package DO NOT Include)"
- Suitable solar panels. There’re some suggestions in the instruction book.
- Wire power cable (3 wires plus earth). we recommend cable size at least can't chicker than the original cable in the pump.
DC Brushless Motor Solar Aerator FAQ
What will happen if there is no sunlight?
The DC solar aerator can work by connecting the battery. When there is no sunlight, the system can still work. When connecting a battery, a charge manager needs to be configured.
However, the system may not be as effective if there is no sunlight for a few days. There is an option for our AC/DC hybrid solar aerators. When there is no sunlight, the water pump can be operated with AC power.
What if the product has quality problems?
Any quality problem, please send the photo or video to us for checking, we will guide you to solve the problem online. If the quality problem can’t be solved by yourself, we can send the spare parts to you for replacement.

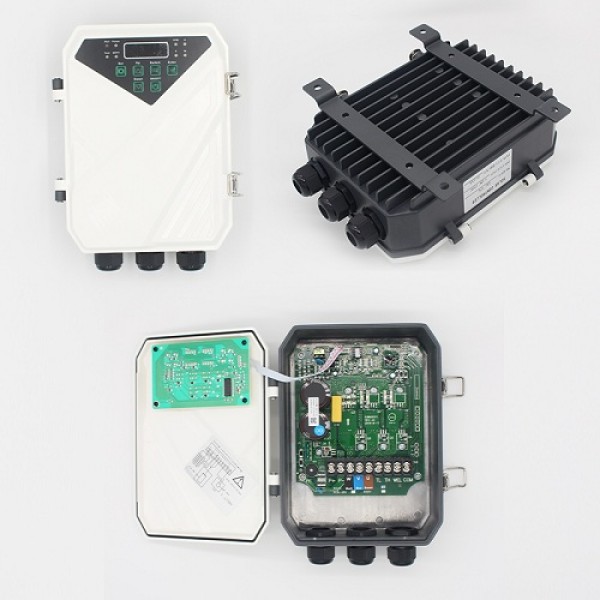

DC MPPT Controller Internal Wiring Diagram
How To Choose Solar Panel
The solar PV system voltage needs to meet the voltage range in the figure below. For example: The DSA15-4.5-48-370 model matches the solar panel voltage between 30V～105V.

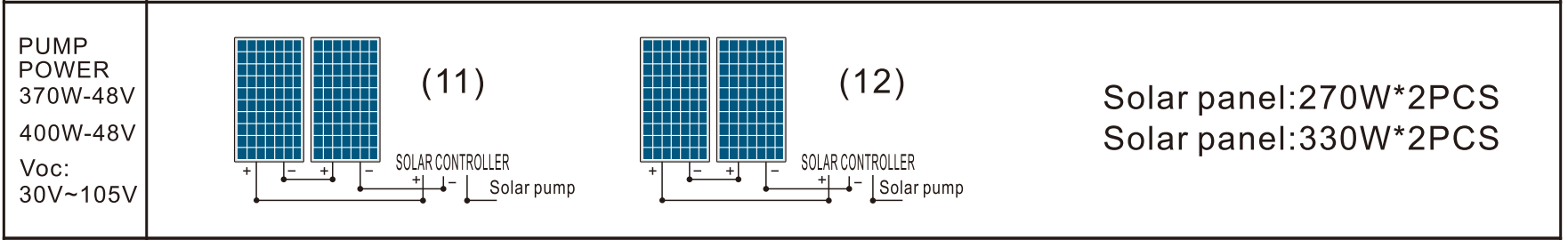

DSA15-4.5-48-370

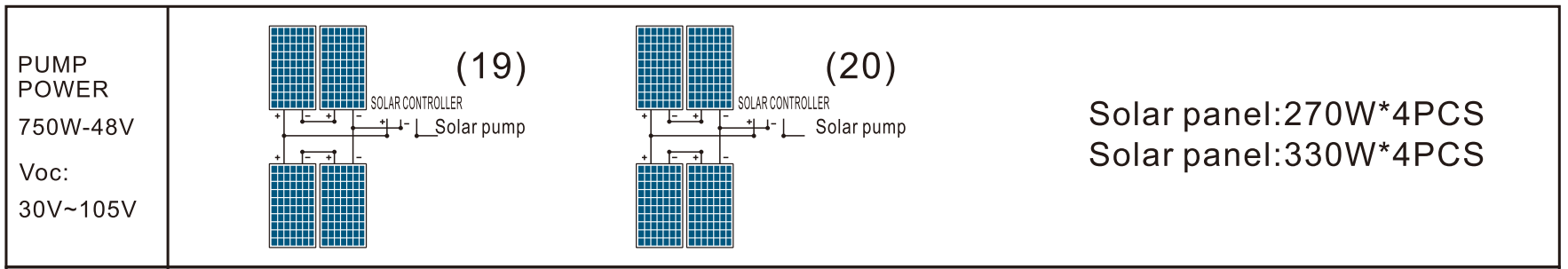

DSA25-5-48-750

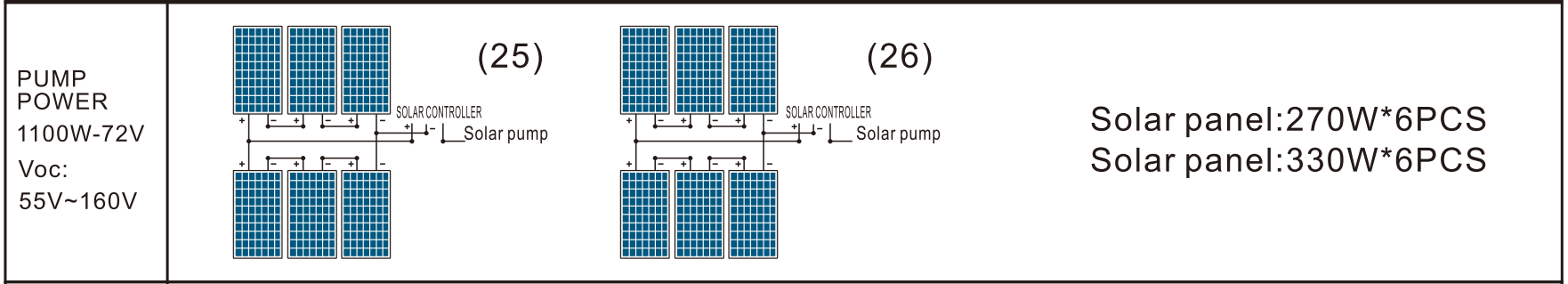

DSA30-7-72-1100

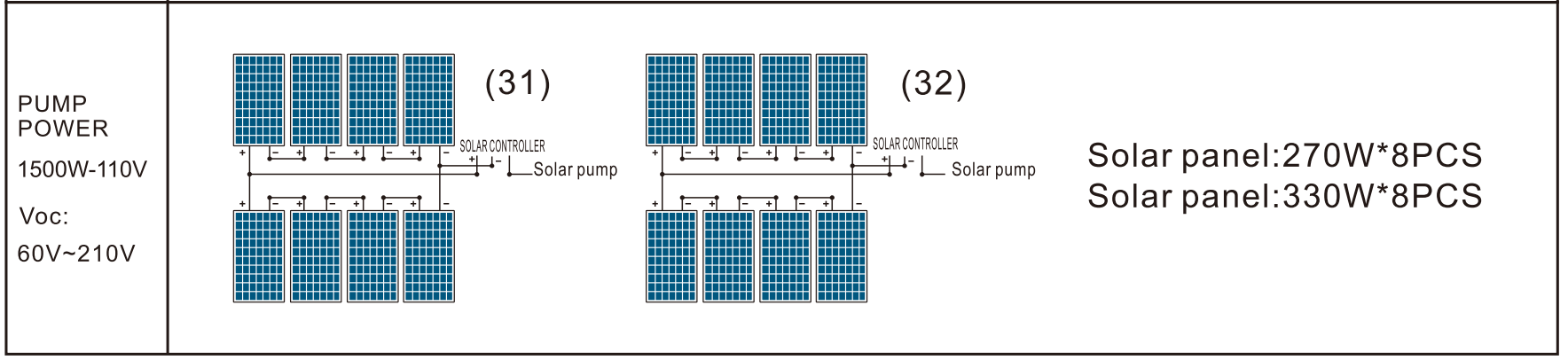

DSA40-6-110-1500
