solar air oxygenator | DC MPPT Controller | solar powered pond aerator | solar aerator factory

Categories:DC SOLAR AERATOR
Brand:ECOCORE
Model:DSAO
Type:solar air oxygenator
Material:stainless steel, plastic
Package type:Wooden case
Warranty:2 years
Certificate:CE, ISO9001
Application:fish pond oxygenation;river management

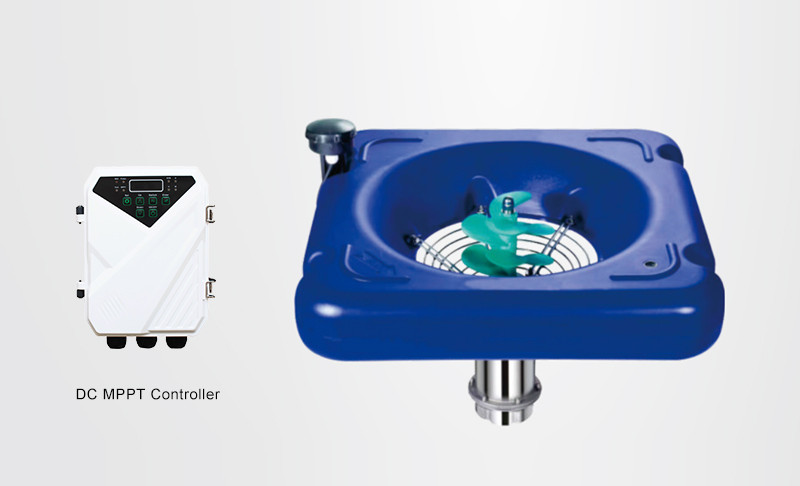

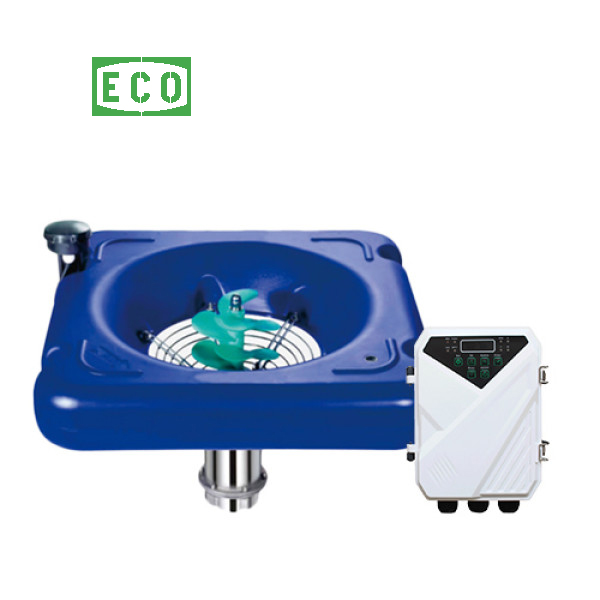

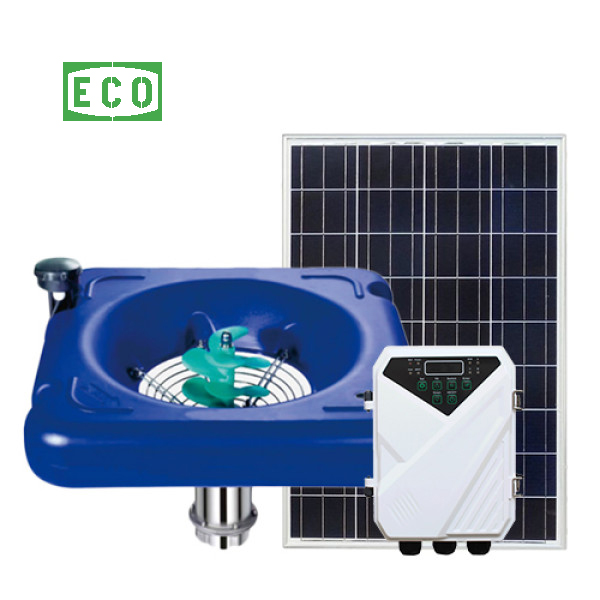

DC Brushless Motor Solar Air Oxygenator

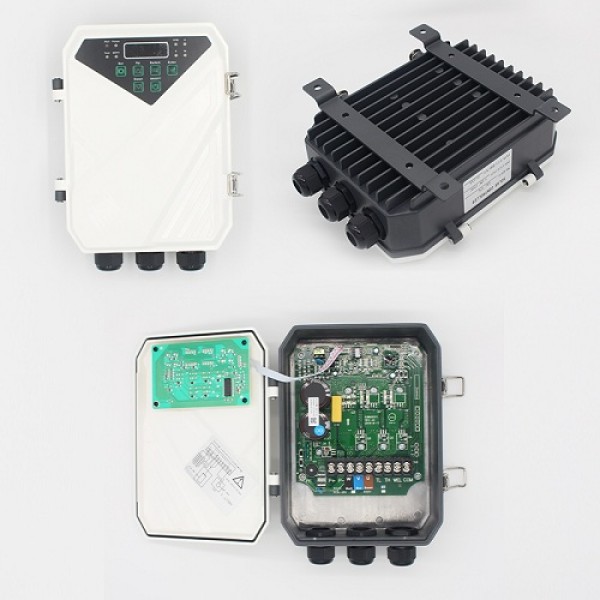

DC MPPT controller:

         Waterproof grade: IP65

         Ambient temperature: -15℃~60℃

         SMPPT Voltage Range(V):

  DF-48:60-90

  DF-110:110-150

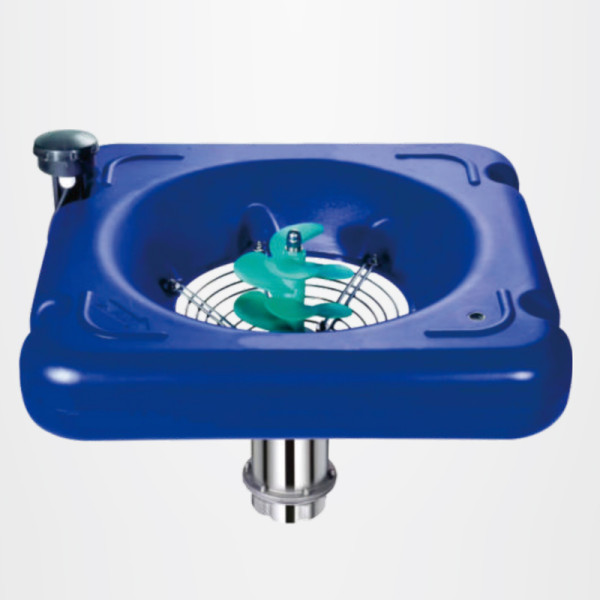

Solar air oxygenator:

         Stainless steel fully sealed submersible motor

         Thick plastic float and impeller

         There is no water depth pressure, no silt sinking, and the service life of the whole machine is longer.

         The direct current generated by the solar panel directly drives the water pump to work. The system does not need expensive batteries, grid connections, or generators.




DC Brushless Motor Solar Air Oxygenator Technical Data

ITEM

Voltage

Best input

voltage(DC)

Power

Oxygenation

(kg/h)

Covering Area

(㎡)

Solar panel

Open circuit

voltage(VOC)

Power

DSAO-48-750

48V

60-90V

750W

≥ 1.1

666-2000

< 105V

1.3*Pump Power

DSAO-110-1500

110V

110-150V

1500W

≥ 2.3

2000-4000

< 210V

1.3*Pump Power



Why to choose a solar aerator:

"Pond aeration involves adding or maintaining oxygen levels in your pond to enhance the quality of the water.

pond aeration has got several benefits on your pond.Your fish will survive, and no odors will come out of your pond due to contaminants and other non-organic material.

It is hard to install an electrically powered aeration system where it is not economical to get to a power source in an isolated pond or lake.

The emergence of solar-powered alternatives means that you can aerate your pond using solar panels thanks to the free energy from the sun’s rays.



If you are determined to reduce the ecological footprint and only use renewable energy sources, then the solar pond aerator is what you need. The cost of running this system is very minimal, making it practical for almost any place."

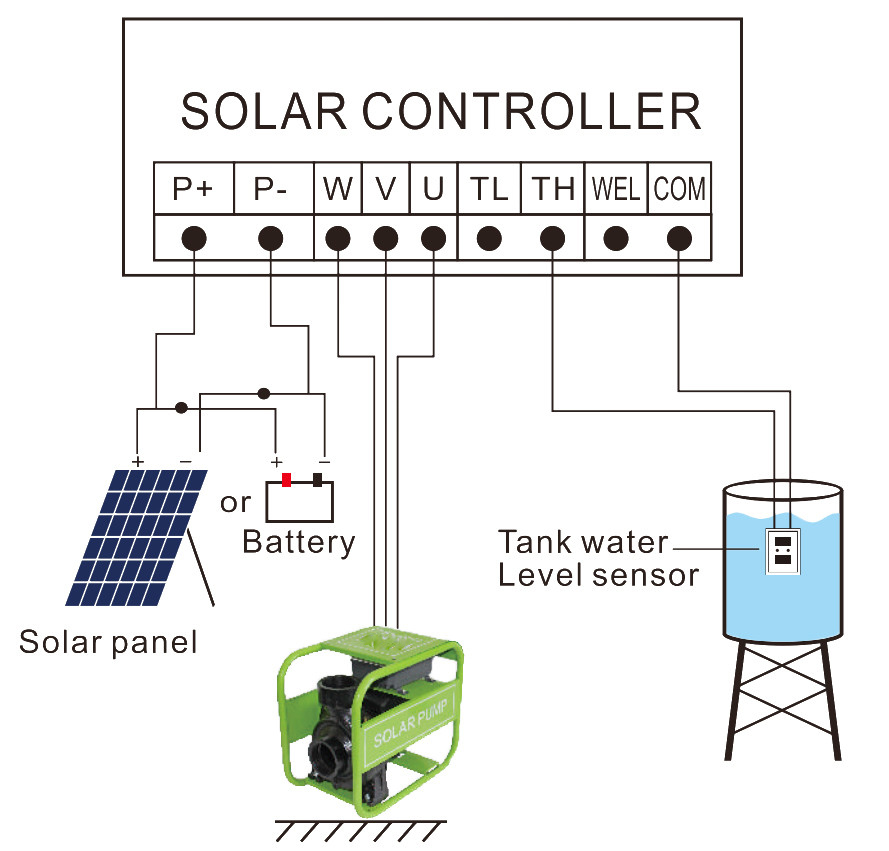

DC MPPT Controller Internal Wiring Diagram


How To Choose Solar Panel

The solar PV system voltage needs to meet the voltage range in the figure below. For example, The DSAO-48-750 model matches the solar panel voltage between 30V~105V.

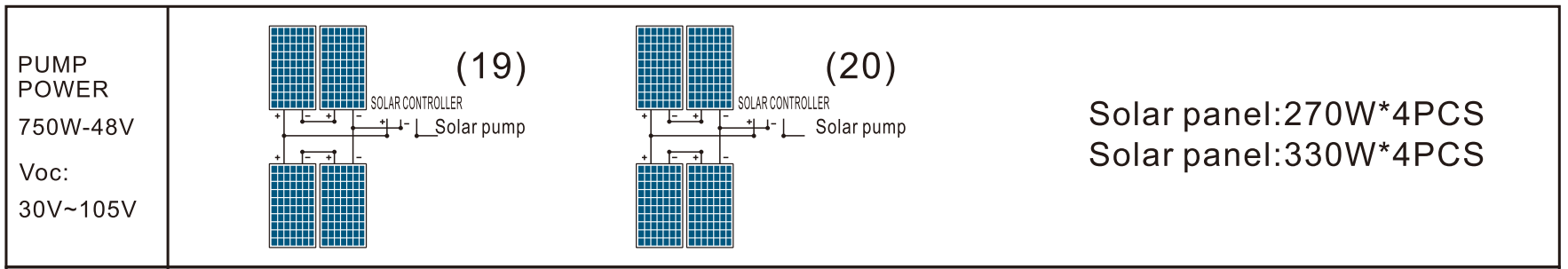

DSAO-48-750

 7828924 (2).png

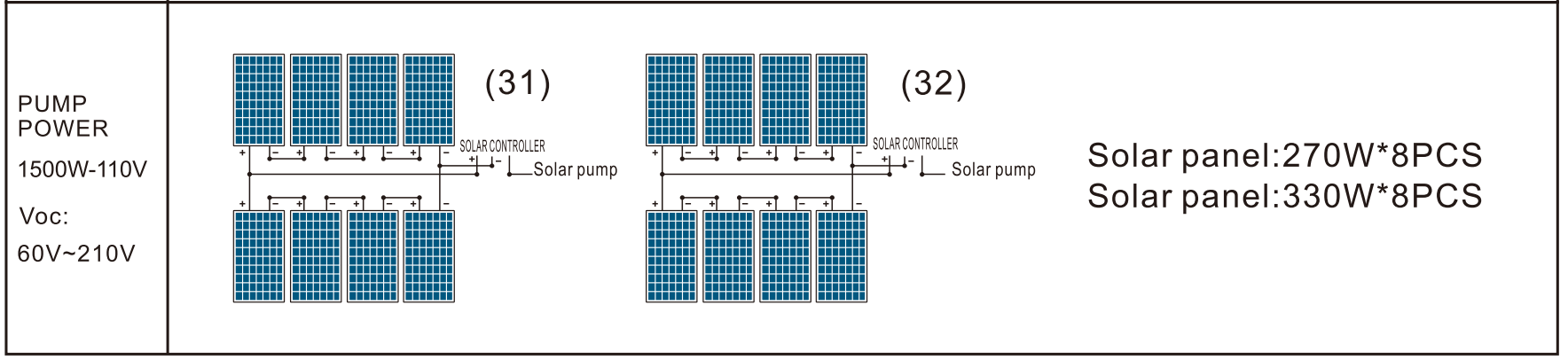

DSAO-110-1500

7828926 (2).png
