Solar Impeller Aerator | DC Brushless Motor Solar Pump | Contains MPPT Controller | Solar Water Pump Company
Categories:DC SOLAR AERATOR
Brand:ECOCORE
Model:DSIA
Type:Solar Paddle Wheel Aerator
Material:plastic
Package type:Wooden case
Warranty:2 years
Certificate:CE, ISO9001
Application:fish pond oxygenation；river management

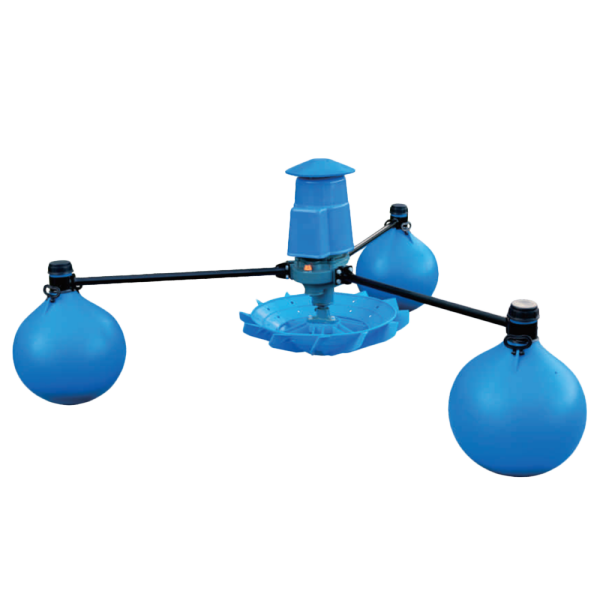

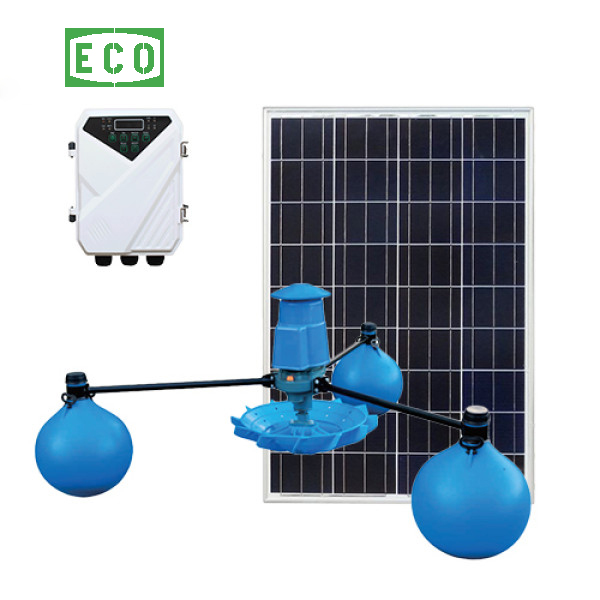

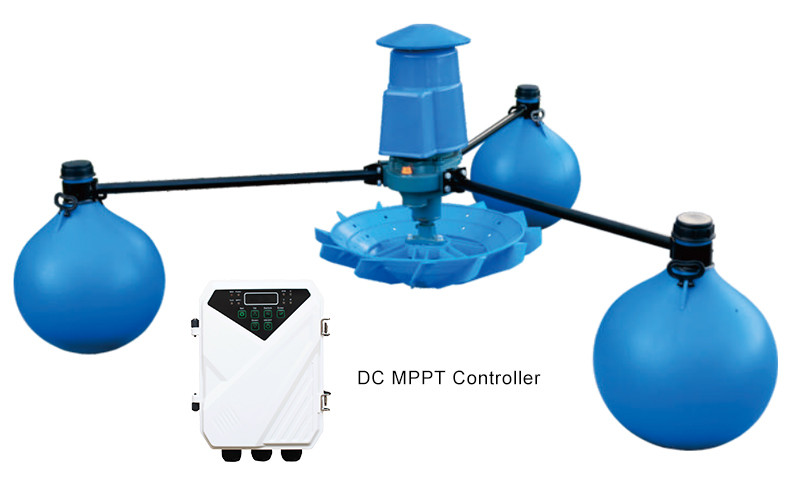

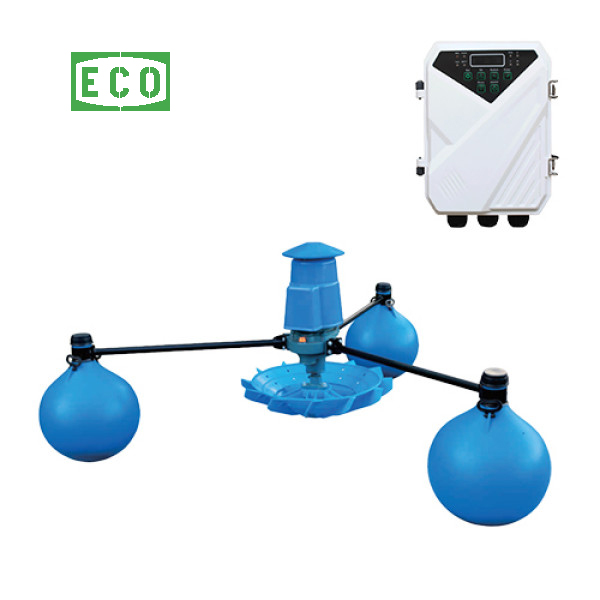

DC Brushless Motor Solar Impeller Aerator

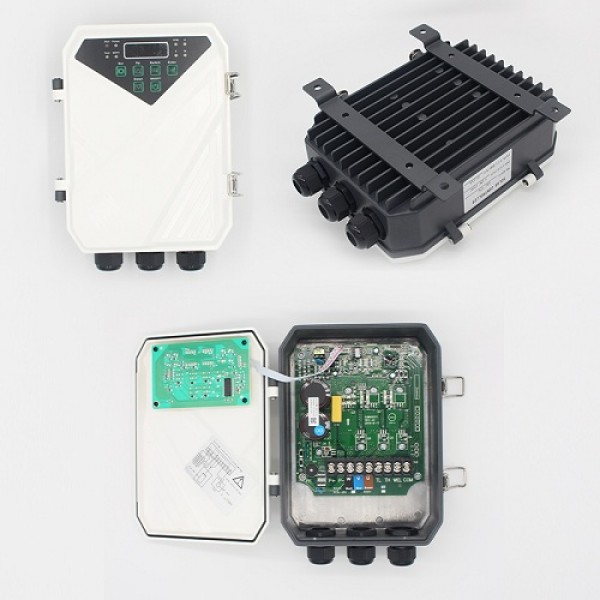

DC MPPT controller：
Waterproof grade: IP65
Ambient temperature: -15℃~60℃
MPPT Voltage Range(V):
DF-48:60-90
DF-72:90-120
DF-110:110-150
Solar Impeller Aerator：
Thickened sphere, high buoyancy, resistance to blisters, sun exposure.
Spiral impeller, the shock wave is accelerated, and the oxygenation effect is more obvious.
The direct current generated by the solar panel directly drives the water pump to work. The system does not need expensive batteries, grid connections, or generators.
DC Brushless Motor Solar Impeller Aerator Technical Data
ITEM | Voltage | Best input voltage(DC) | Power | Oxygenation(kg/h) | Covering Area(㎡) | Solar panel | |
Open circuit voltage(VOC) | Power | ||||||
DSIA-48-750 | 48V | 60-90V | 750W | ≥ 1.1 | 666-3330 | < 105V | 1.3*Pump Power |
DSIA-72-1100 | 72V | 90-120V | 1100W | ≥ 1.6 | 2000-2665 | < 160V | 1.3*Pump Power |
DSIA-110-1500 | 110V | 110-150V | 1500W | ≥ 2.3 | 2000-4000 | < 210V | 1.3*Pump Power |
Why to Choose a Solar Impeller Aerator:
Pond aeration involves adding or maintaining oxygen levels in your pond to enhance the quality of the water.
pond aeration has got several benefits for your pond. Your fish will survive, and no odors will come out of your pond due to contaminants and other non-organic materials.
It is hard to install an electrically powered aeration system where it is not economical to get to a power source in an isolated pond or lake.
The emergence of solar-powered alternatives means that you can aerate your pond using solar panels thanks to the free energy from the sun’s rays.
If you are determined to reduce the ecological footprint and only use renewable energy sources, then the solar pond aerator is what you need. The cost of running this system is very minimal, making it practical for almost any place.
"What we get for you: (Package Include)"
- 1 x DC brushless motor solar impeller aerator
- 1 x DC controller with MPPT function
- 1 x Product Manual
"What You need to get by yourself: (Package DO NOT Include)"
- Suitable solar panels. There’re some suggestions in the instruction book.
- Wire power cable (3 wires plus earth). we recommend cable size at least can't chicker than the original cable in the pump.
DC Brushless Motor Solar Paddle Wheel Aerator FAQ
How much does Solar Impeller Aerator cost?
The price of a solar pool aerator can vary based on a number of factors, including but not limited to:
Actual size
Feature
Efficiency
Components of the aerator
For more information please contact us
What is the difference between a solar pond aerator and a traditional pond aerator?
The main difference between solar pond aerators and traditional pond aerators is that solar aerators use renewable energy solar energy to power the water pumps.
Some people argue that electric aeration systems are more efficient, but solar aerators are also very effective if you have large ponds with large solar panels.
As long as there is plenty of sunlight, solar aerators work flawlessly just like traditional pond aerators.

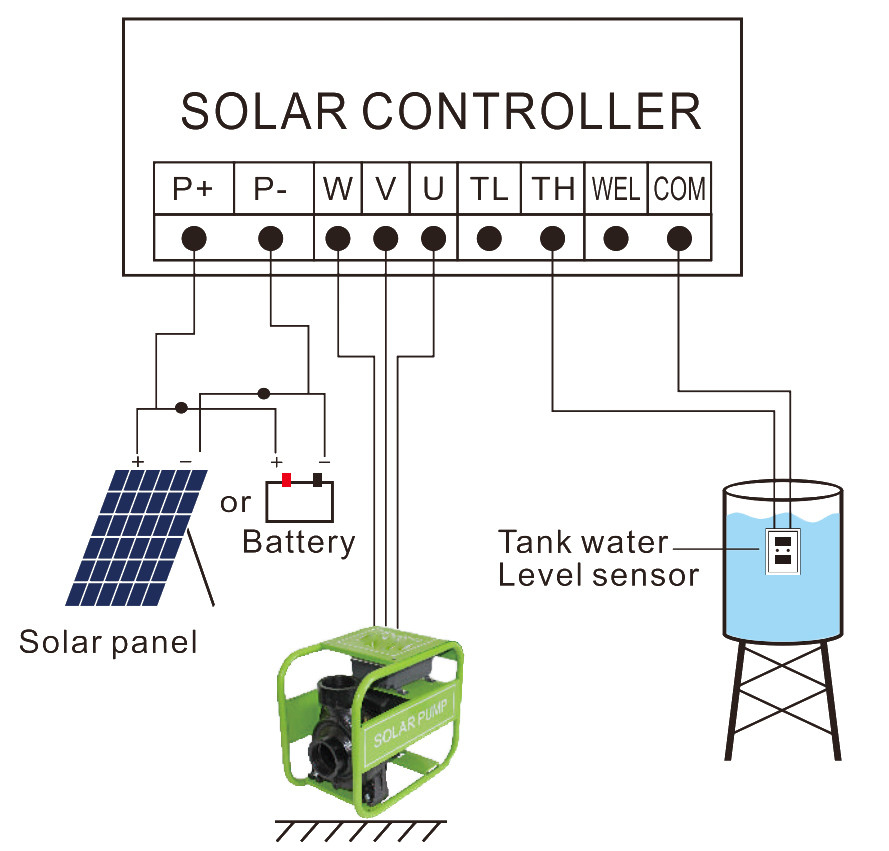

DC MPPT Controller Internal Wiring Diagram
How To Choose Solar Panel
The solar PV system voltage needs to meet the voltage range in the figure below. For example, The DSIA-48-750 model matches the solar panel voltage between 30V～105V.

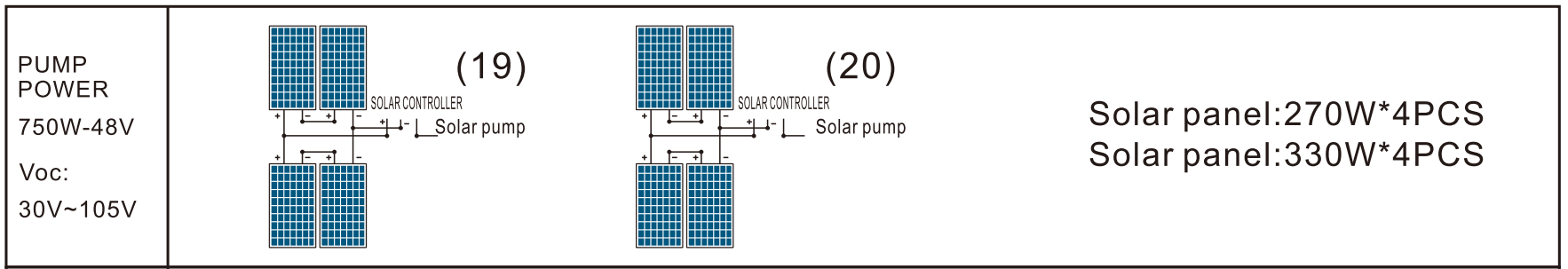

DSIA-48-750

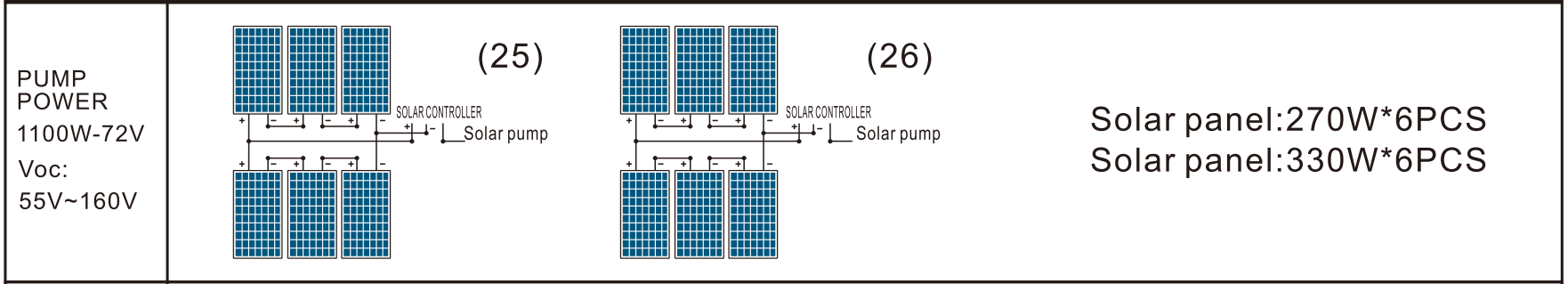

DSIA-72-1100

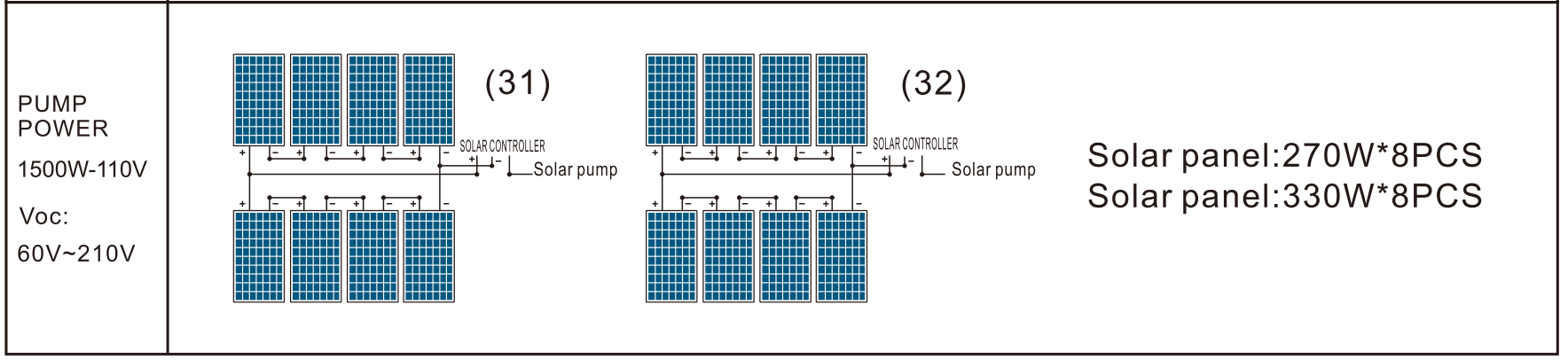

DSIA-110-1500
